360 4x4

Xtreme Outback HD Clutch Kit - Sprung Organic - Suits Single Mass Flywheel - Toyota Surf, Hilux, Hiace

Xtreme Outback HD Clutch Kit - Sprung Organic - Suits Single Mass Flywheel - Toyota Surf, Hilux, Hiace

Regular price $1,250.00 NZD
Regular price Sale price $1,250.00 NZD
Sale Sold out
Tax included.

The stage 1 upgrade from Xtreme Outback is designed to provide a significant increase in torque capacity whilst retaining driveability for daily driven vehicles. These kits are ideal for vehicles that have been tuned, tow heavy loads regularly, are fitted with larger tyres or heavy accessories and that are used in extreme conditions. The 100 series kit includes heavy duty pressure plate with increased clamping force and a sprung or rigid organic friction disc depending on the application. The kit also includes an alignment tool, spigot bearing/bush and release bearing where required. Xtreme Outback also offers a range of different kit options for those looking for a replacement flywheel, hydraulics or accessories as well as extra heavy duty kits for specific applications requiring an even further increase in torque capacity. The Xtreme Outback range of heavy duty clutch upgrades has been specifically designed and engineered to provide increased clamping force for improved torque holding capability. As a division of Australian Clutch Services, Xtreme Outback takes over 30 years of experience in the Australian clutch market as well as an extensive research and development process to engineer clutch upgrades for everything from daily driven 4×4 vehicles to dedicated rally applications. With a variety of stages and options available, the Xtreme Outback range is ideal for those looking for the highest quality and performance for their 4×4.

Features:

  • Heavy duty clutch upgrade for increased torque capacity

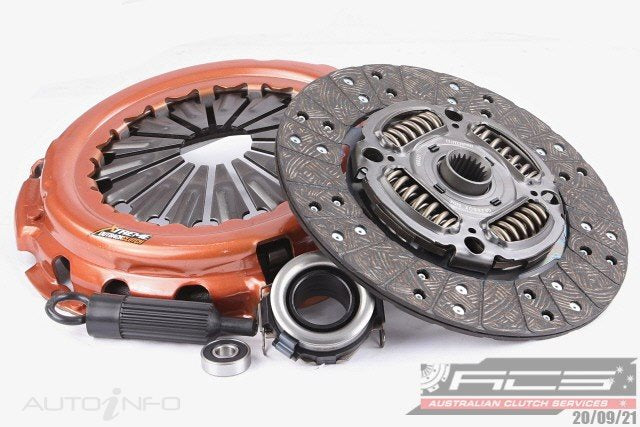

  • Kit includes heavy duty pressure plate & friction disc
  • Organic friction disc for street driveability
Flywheel Step (mm) Flat
Clutch Disc Diameter (mm) 260
Clutch Disc Spline Count - 21
Clutch Disc Spline Diameter (mm) 29.8
Disc Type - Sprung
Friction Material - Organic
Stage - 1
Recommended Use - Street / Offroad / Towing
Clamping Force % Increase - 30%
Torque (Nm) Inc FOS - 410
Torque (ftlbs) Inc FOS - 300
Spigot Bush/Bearing Included - Yes
Aligning Tool Included - Yes
Spline Grease Included - Yes
Transport Weight (kg) - 10

Vehicle fitment -

TOYOTA HIACE KZH100R KZH100 08/1993 ~ 07/2004 3 Door Van 3.0 litre, DIESEL 1KZTE I4 8v SOHC Turbo EFI {95kW}
TOYOTA HIACE KZH106R KZH106 08/1993 ~ 07/2004 3 Door Van 3.0 litre, DIESEL 1KZTE I4 8v SOHC Turbo EFI {95kW}
TOYOTA HIACE KZH110R KZH110 08/1993 ~ 07/2004 3 Door Van 3.0 litre, DIESEL 1KZTE I4 8v SOHC Turbo EFI {95kW}
TOYOTA HIACE KZH116R KZH116 08/1993 ~ 07/2004 3 Door Van 3.0 litre, DIESEL 1KZTE I4 8v SOHC Turbo EFI {95kW}
TOYOTA HIACE KZH120R KZH120 08/1993 ~ 07/2004 3 Door Van 3.0 litre, DIESEL 1KZTE I4 8v SOHC I/C Turbo EFI {95kW}
TOYOTA HIACE KZH126R KZH126 08/1993 ~ 07/1999 3 Door Van 3.0 litre, DIESEL 1KZTE I4 8v SOHC I/C Turbo EFI {95kW}
TOYOTA HILUX SURF KZN130R KZN130 08/1993 ~ 07/1997 4 Door SUV Mid-Size 3.0 litre, DIESEL 1KZTE I4 8v SOHC Turbo EFI {96kW}
TOYOTA HILUX SURF KZN185R KZN185 12/1995 ~ 07/1998 4 Door SUV Mid-Size 3.0 litre, DIESEL 1KZTE I4 8v SOHC Turbo EFI {96kW}
TOYOTA HILUX SURF KZN185R KZN185 08/1998 ~ 06/2000 4 Door SUV Mid-Size 3.0 litre, DIESEL 1KZTE I4 8v SOHC I/C Turbo EFI {108kW}
