STEDI Vice Bull Bar Tube Clamps (Small Size)

DIVERSE APPLICATION.

The STEDI Vice Clamp Bull Bar Brackets will meet the versatile application when it comes to side mounted & certain lower mounted LED light Bars. Made from cast aluminium with stainless steel fasteners keeping it strong yet light weight as well as a polyester UV stable powder coat to reduce fade.

UNMATCHED VERSATILITY.

Its ability to rotate on the bar and 360° rotation of your LED Light bar willopen up your method of mounting. Visually described in our product video you are able to face the clamps on any angle whilst still keeping the light facing forward.

SIGNATURE COMPATIBILITY.

When mounted on a vertical bar you will find the majority of our LED Work lights will also mount straight into the Vice Clamp as well. Compatible with LED Work Lights from as small as the 10w Mini up to as large as 60w Mining Spec.

THE NITTY
GRITTY.

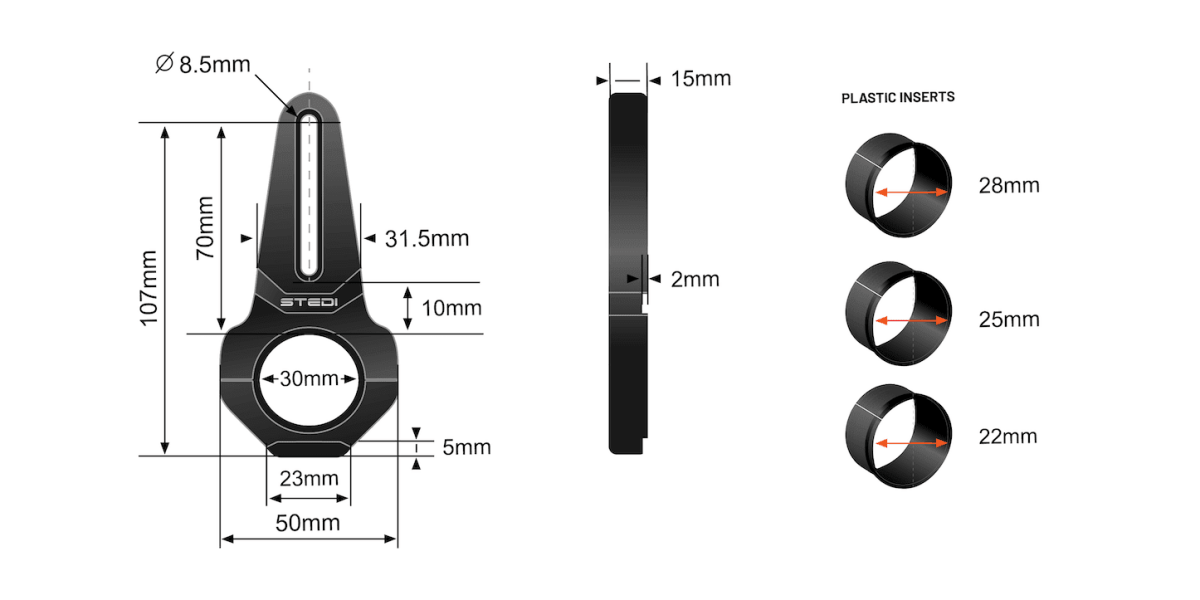

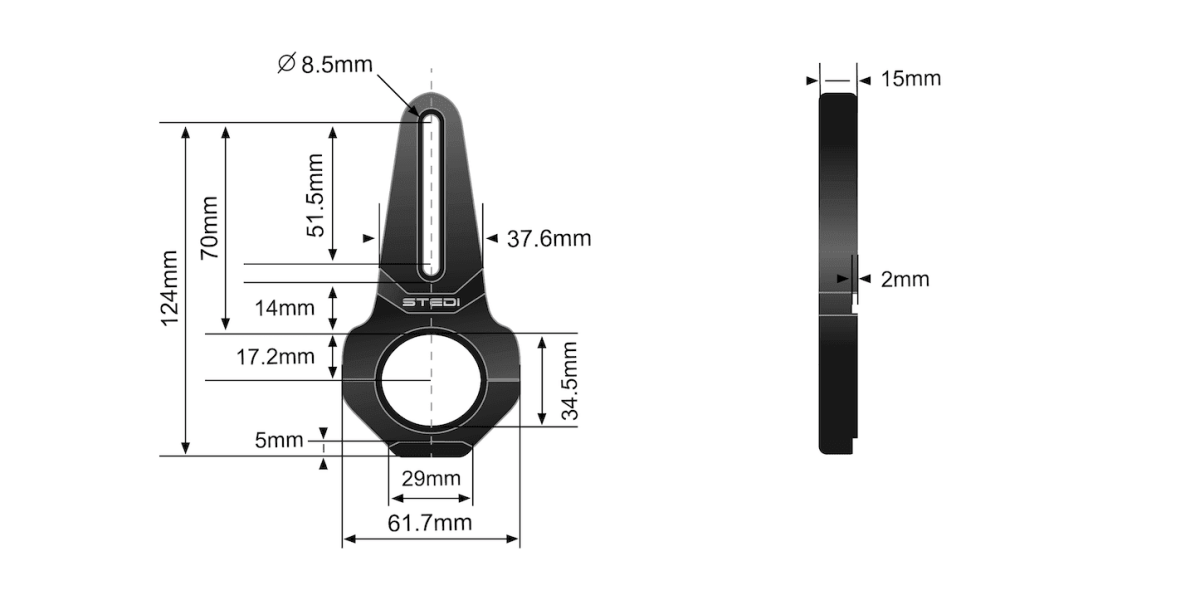

STEDI's all-new 22mm - 30mm and 35mm - 40mm Universal Light Bar Mounting Bracket.

Our brackets are guaranteed not to slip or fatigue no matter the environment. Unlike other generic clamps on the market, the aesthetic design of our light bar brackets facilitates a clean integrate install of your light bar work lights.

KEY TECHNICAL DETAILS

• Inserts supplied to fit 22mm, 25mm, 28mm, 30mm
• Moulded from Cast Aluminium
• Stainless Steel Fasteners included
• Compatible with most side-mounted LED Light Bars
• Polyester UV Stable Powder Coated
• 4mm set screw eliminates the possibility of slip.

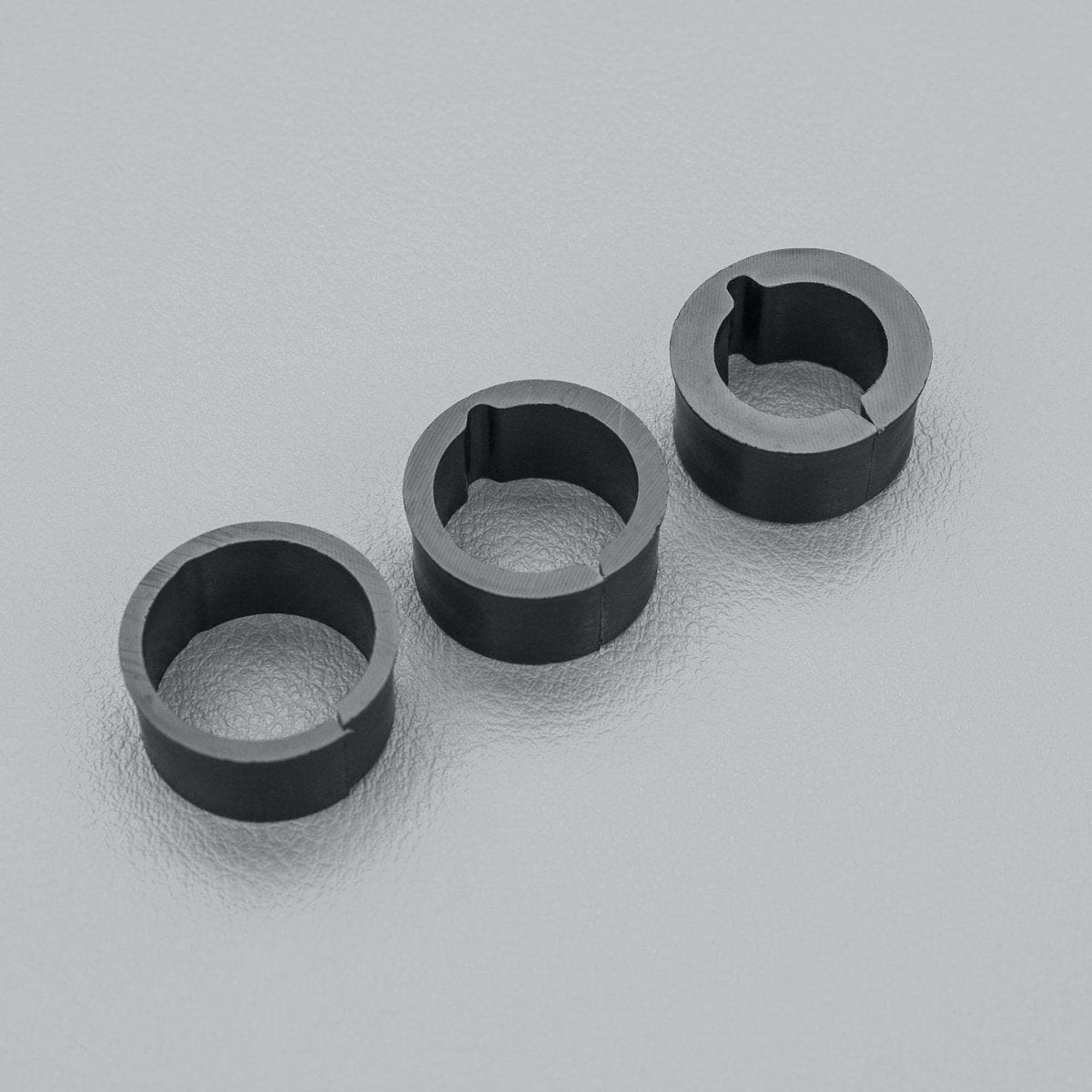

Rubber inserts also included

Price is for 2 brackets.

In the event you do not have any vernier calipers, please measure the circumference (in mm) of your round bar and apply below formula; diameter (mm) = circumference (mm) divided by / 3.14 = (Tube Diameter

Registered Design number: 201811269

Please Note: The 22-30mm clamps suit only M6 bolts, the 35-40mm clamps suit M8 bolts.

TECH SPECS

WHAT'S INCLUDED

• 22-30mm
  • 2 x Vice Bull Bar Aluminium Universal Light Mount Brackets
  • 4 x Rubber Inserts
  • 2 x Grub Screws
  • 4 x Stainless 6mm Bolts
  • 1 x Allen Wrenches
• 35-40mm
  • 2 x Vice Bull Bar Aluminium Universal Light Mount Brackets
  • 1 x Rubber Inserts
  • 2 x M8 Set Screws
  • 2 x M6 Set Screws
  • 2 x Grub Screws
  • 4 x Stainless 6mm Bolts
  • 2 x Allen Wrenches
