STEDI Universal Type B LED Fog Light Conversion Kit
STEDI Universal Type B LED Fog Light Conversion Kit
UNIVERSAL HOUSING SOLUTION.
If you're looking for an OEM-like LED upgrade, look no further down our Type B fog light which has mounting brackets to suit a wide range of factory fog lamp housing.
THE NITTY
GRITTY.
KEY TECHNICAL DETAILS

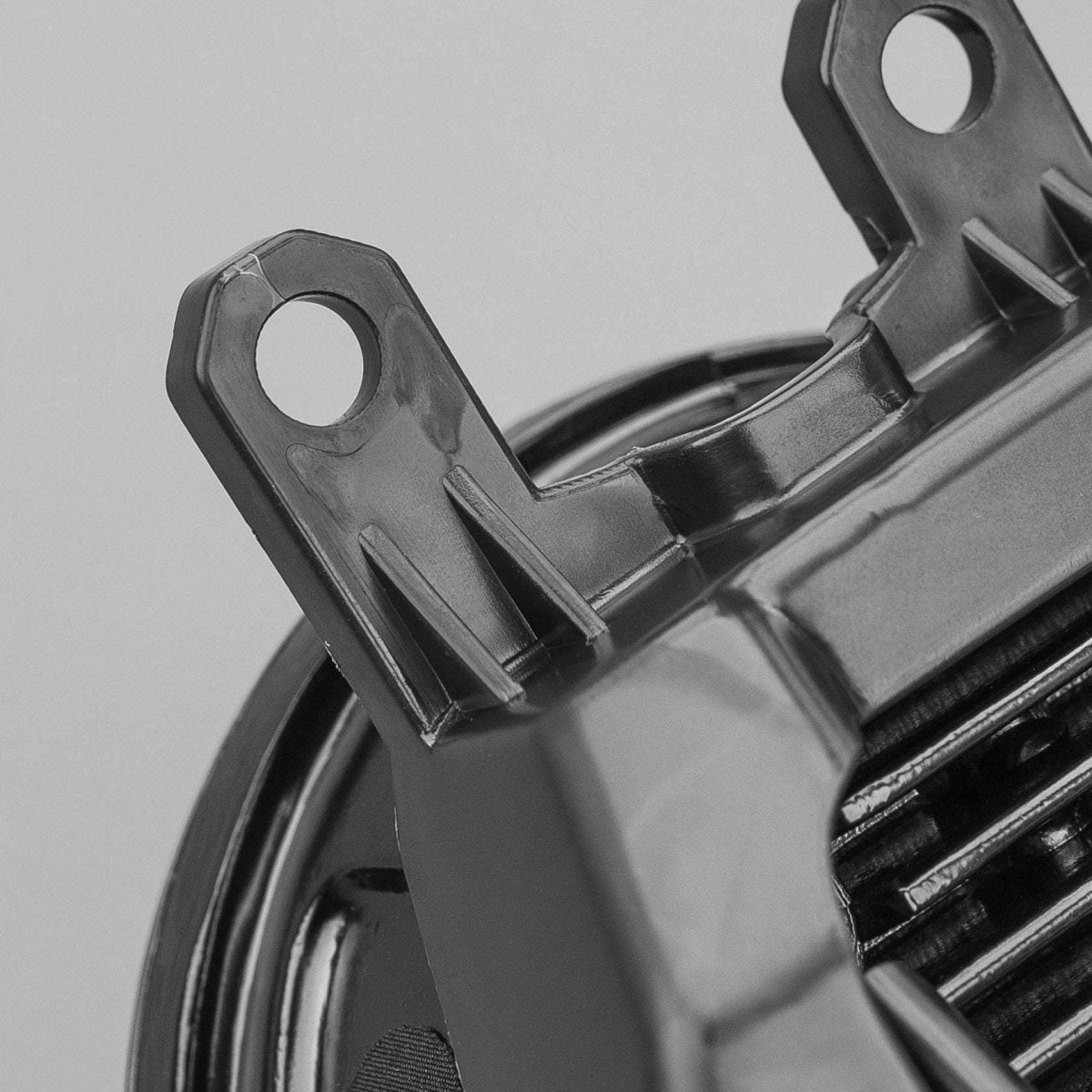

These LED fog lights are a direct fit which uses your factory mounting points in behind the standard front bumper, and some aftermarket bull bars listed below.

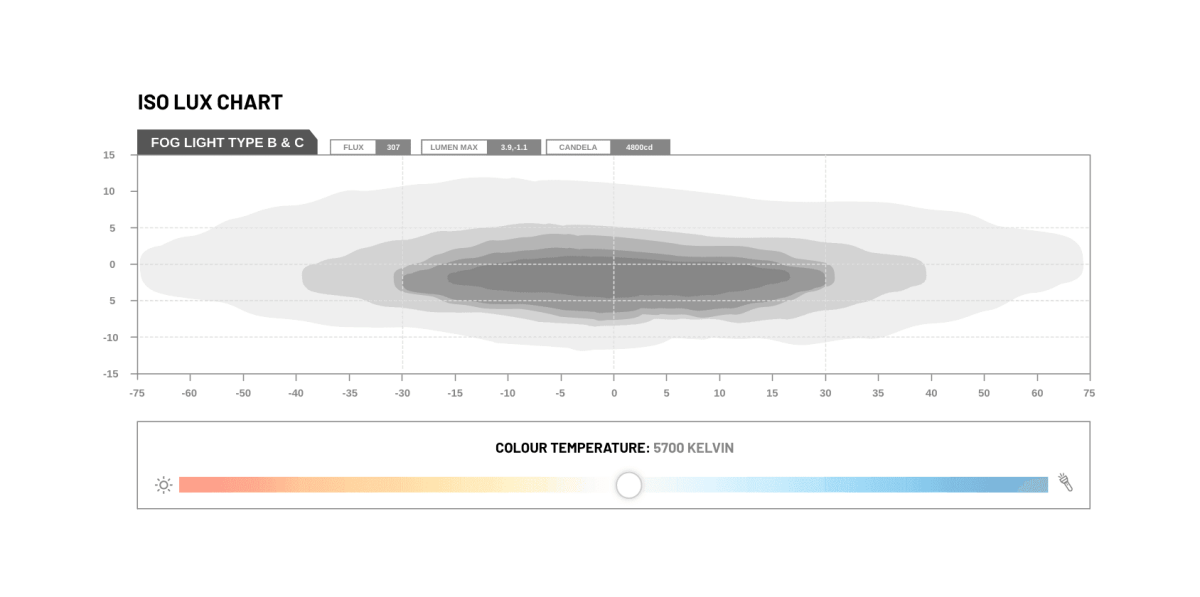

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.
Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.
Please check below for a full list of compatible vehicles.
COMPATIBLE VEHICLES:
LEXUS
- LX570: 2008 - 2011
- IS-F: 2008 - 2013
- HS250H: 2010 - 2012
- RX270 / RX350 / RX450: 2010 - 2015
- GS350: 2013 - 2015
- LX570: 2013 - 2017
TOYOTA
- 4 RUNNER: 2014 - 2017
- AURION: 2007 - 2017
- AURIS: 2007 - 2017
- AVALON: 2008 - 2010
- CAMRY: 7/2006 - 11/2011
- CAMRY HYBRID: AHV40 2010 - 2011
- COROLLA: 3/2007 to 2013
- FORTUNER: 2015 - 2017
- KLUGER: 2007 - 2017
- N80 (Revo) HILUX: 2016 - 2019
- N70 (Vigo) HILUX: 2012 - 2015 (face-lift)
- LANDCRUISER PRADO 150: 2009 - 2020
- LANDCRUISER 200 SERIES: 2016 - 2020
- PRIUS: 2009 - 2015
- PRIUS C: 2012 - 2017
- RAV 4: 2006 - 2011
- RAV 4: 2016 - 2017
- TUNDRA: 2013 - 2017
- YARIS: 2014 - 2017
PEUGEOT
- 206: 1998 - 2005
- 206 SPORT: 1998 - 2005
TECH SPECS

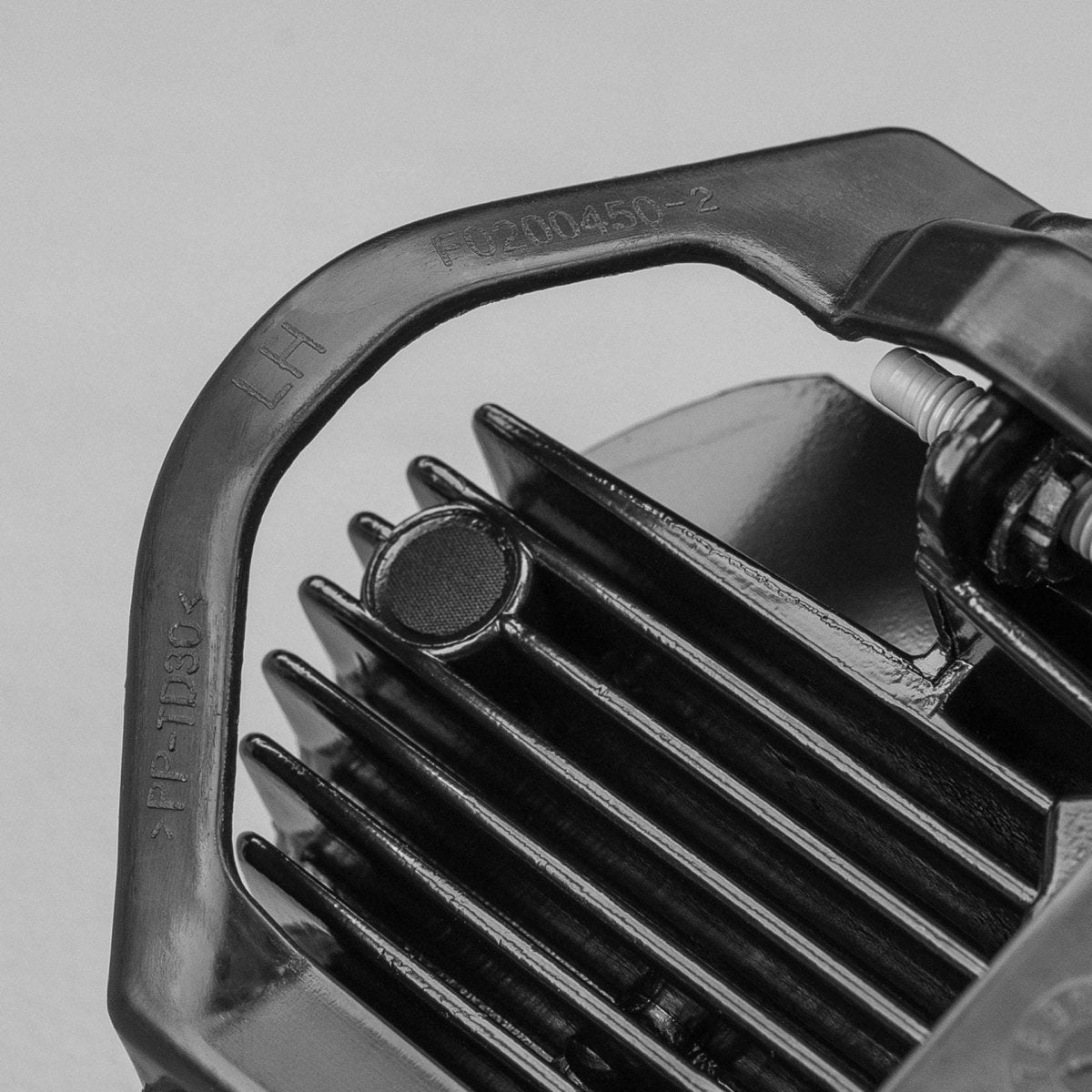

HOUSING MATERIAL | Alloy Heat Sink |
LED | High Performance Luxeon T LED |
LUMEN | 960LM (per light) |
COMPATIBLE VOLTAGE | 12v and 24v |
LIFESPAN | 50,000hours |

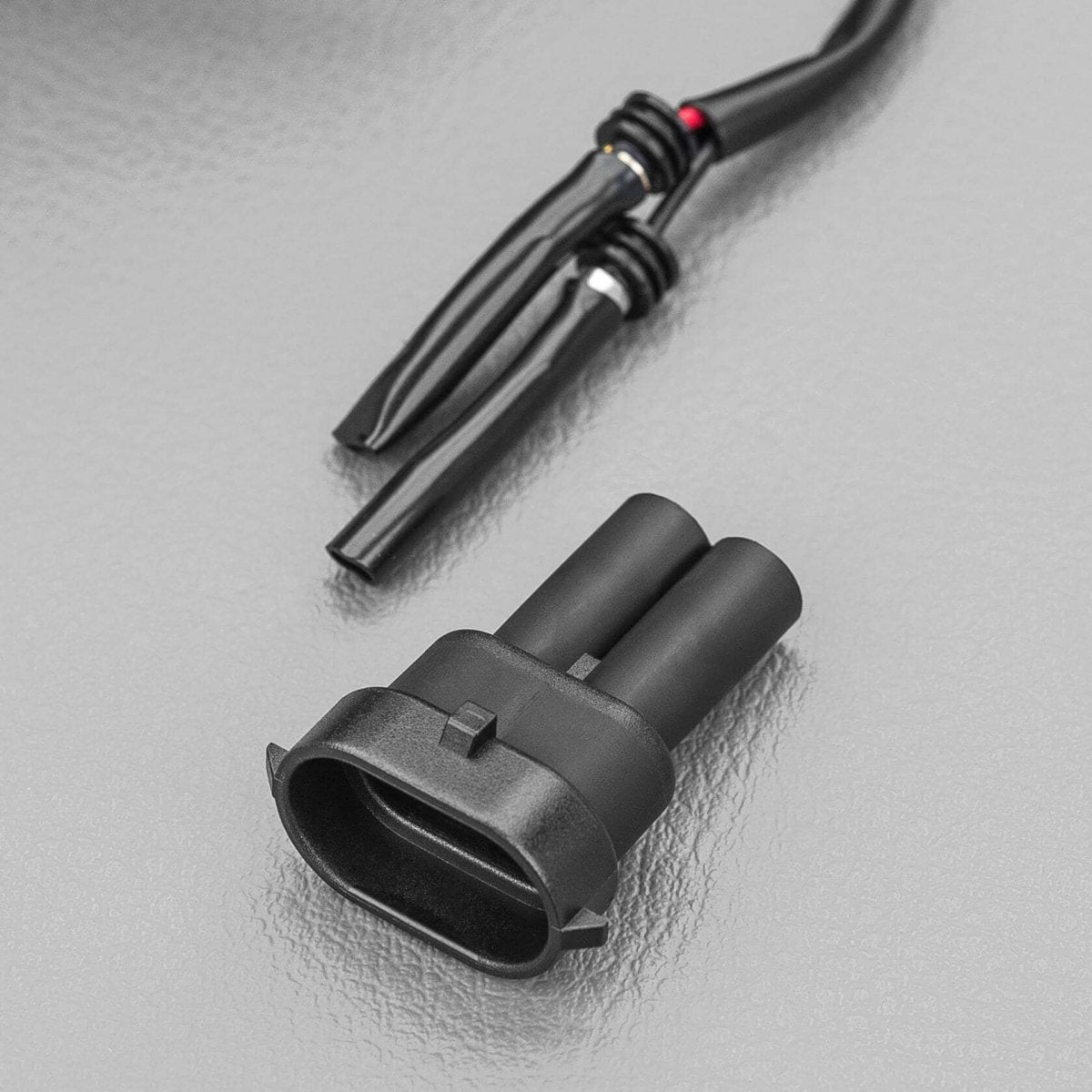

CONNECTOR TYPE | Sealed |

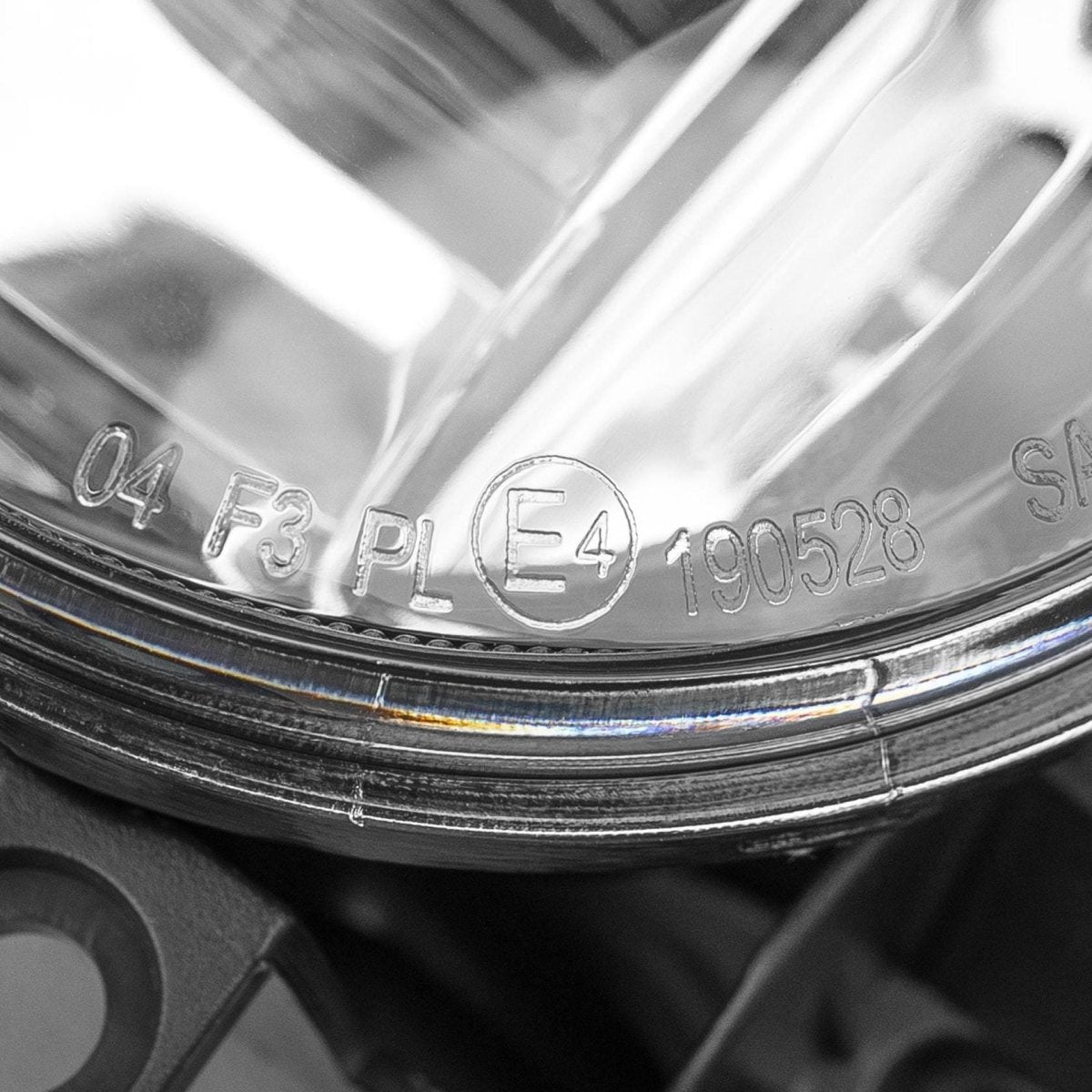

CERTIFICATION | CE, E4, RoHs, R87, IP67 |
FOG LIGHT DRAW | 0.5a @ 13.6v |

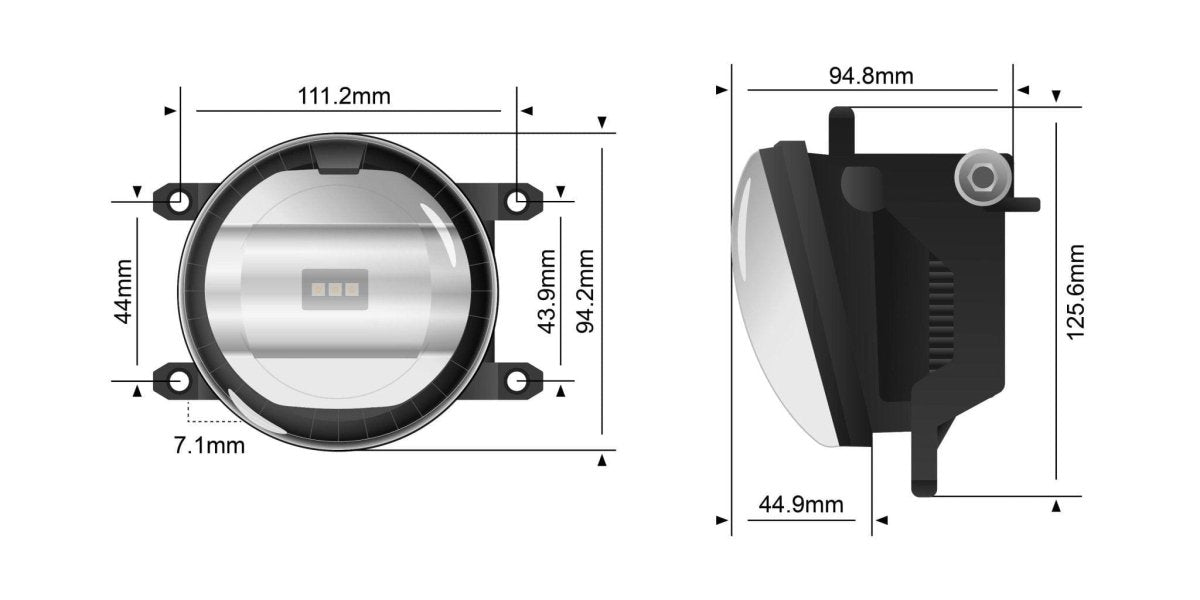

DIAMETER | 90mm |
WHAT'S INCLUDED

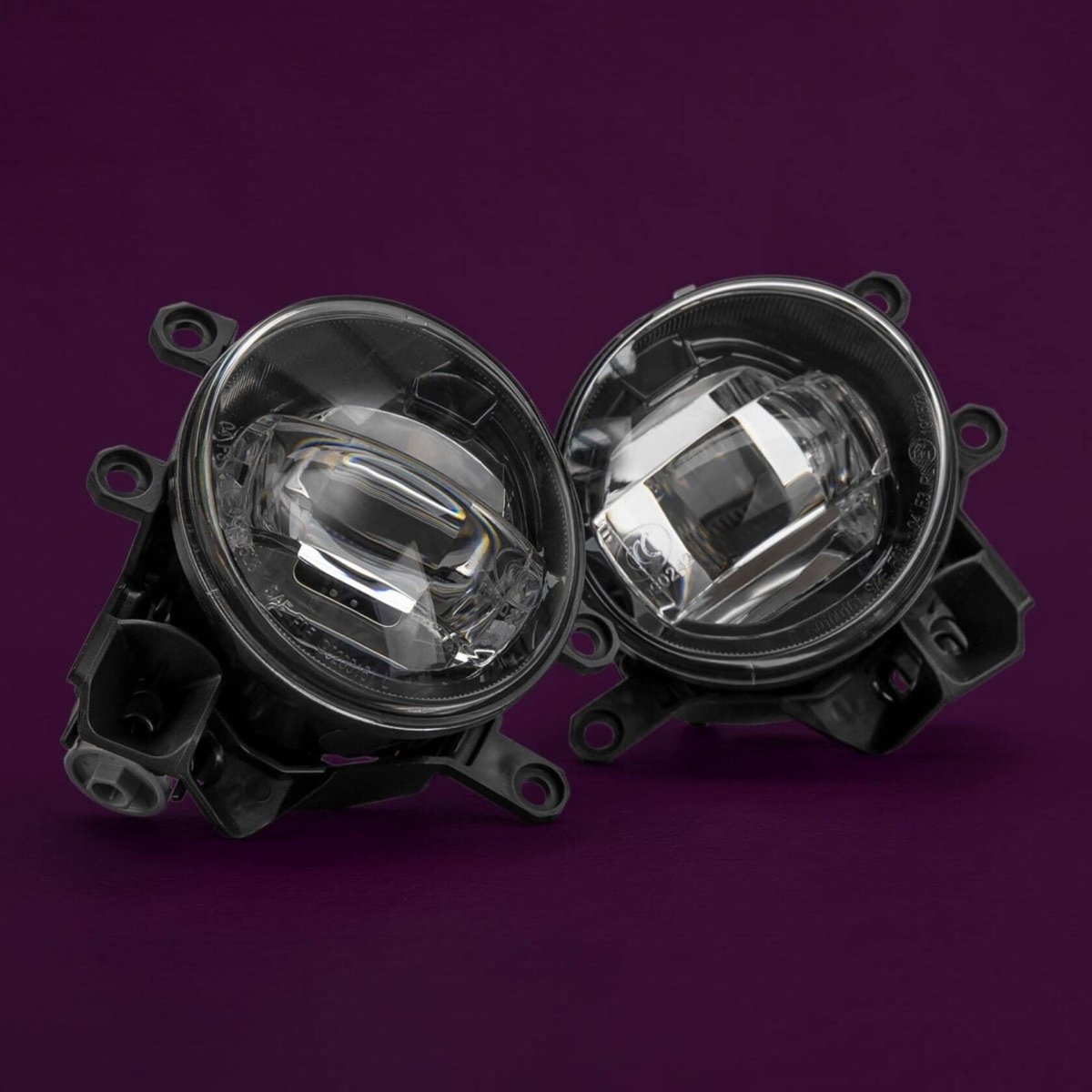

- 2 x STEDI Universal Type B Fog Lights
- Fasteners Included
