STEDI ST3K 21.5 Inch 20 LED Slim LED Light Bar
STEDI ST3K 21.5 Inch 20 LED Slim LED Light Bar
Couldn't load pickup availability
Introducing our ST3K Series 21.5 Inch LED Light Bar. Running 20 of OSRAM’s® finest OSLON® LEDs with a combination of 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m.
Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for application that are tight on clearance but still command maximum performance.
493 METRES LIGHTING DISTANCE
SLIM PROFILE, HUGE PERFORMANCE!
OVERVIEW

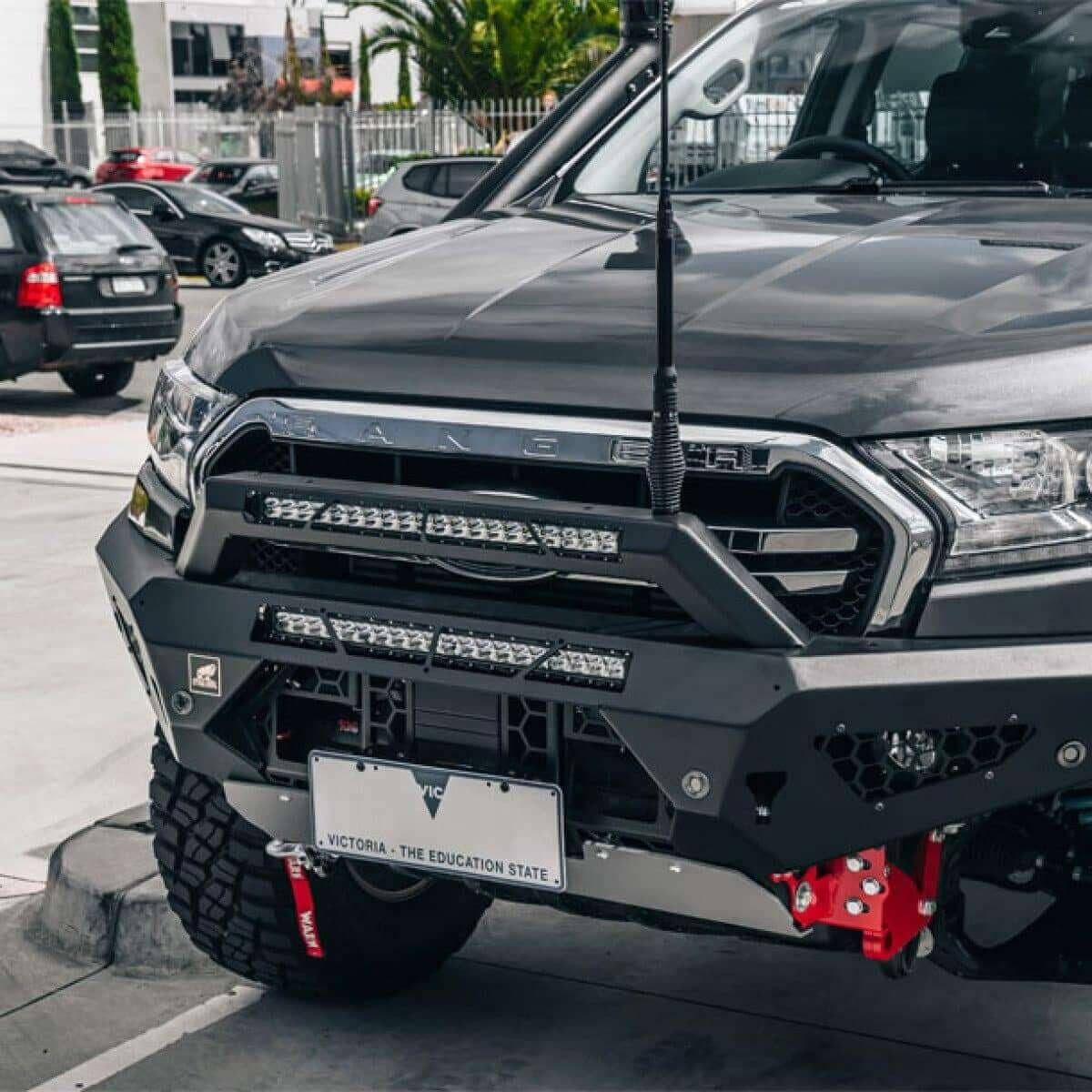

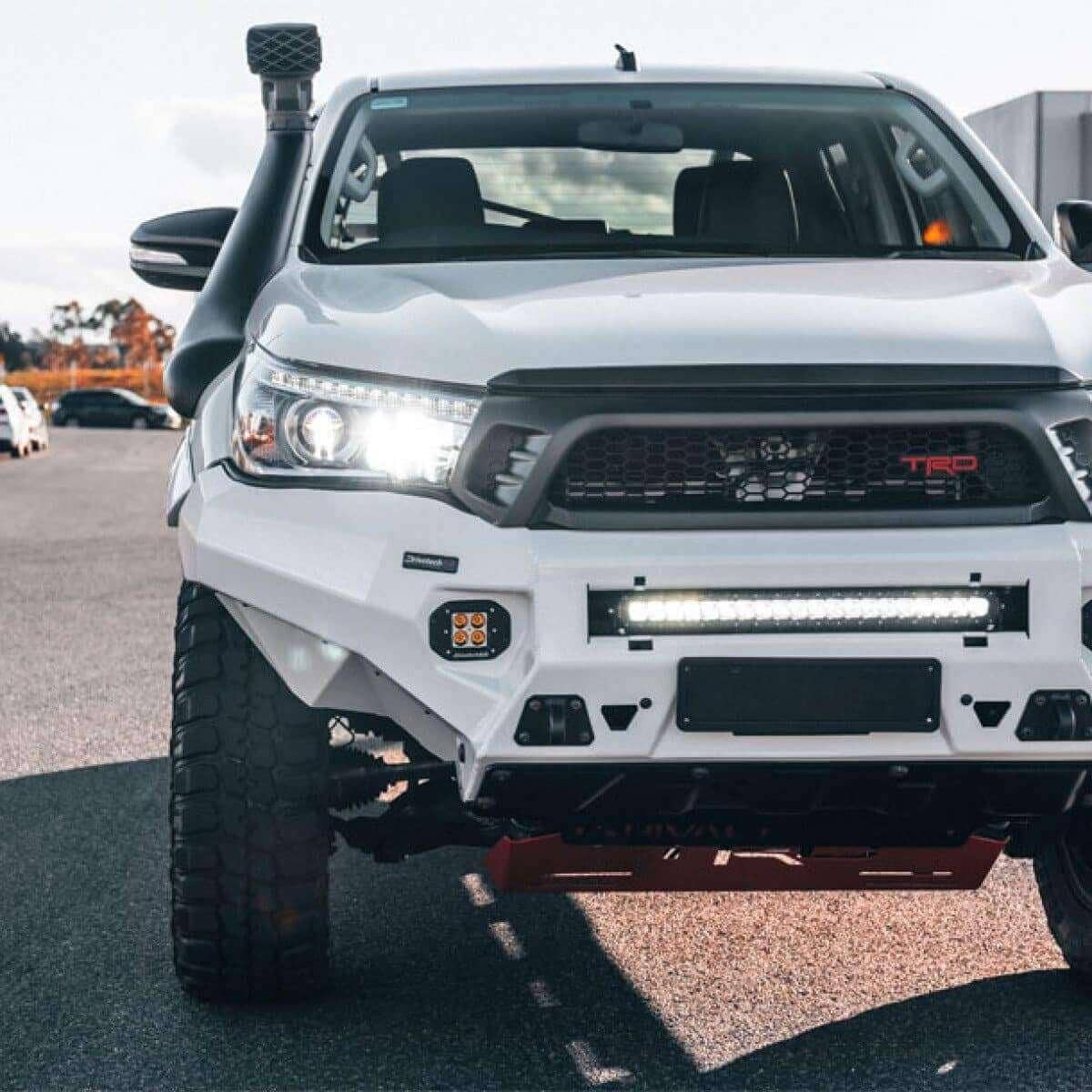

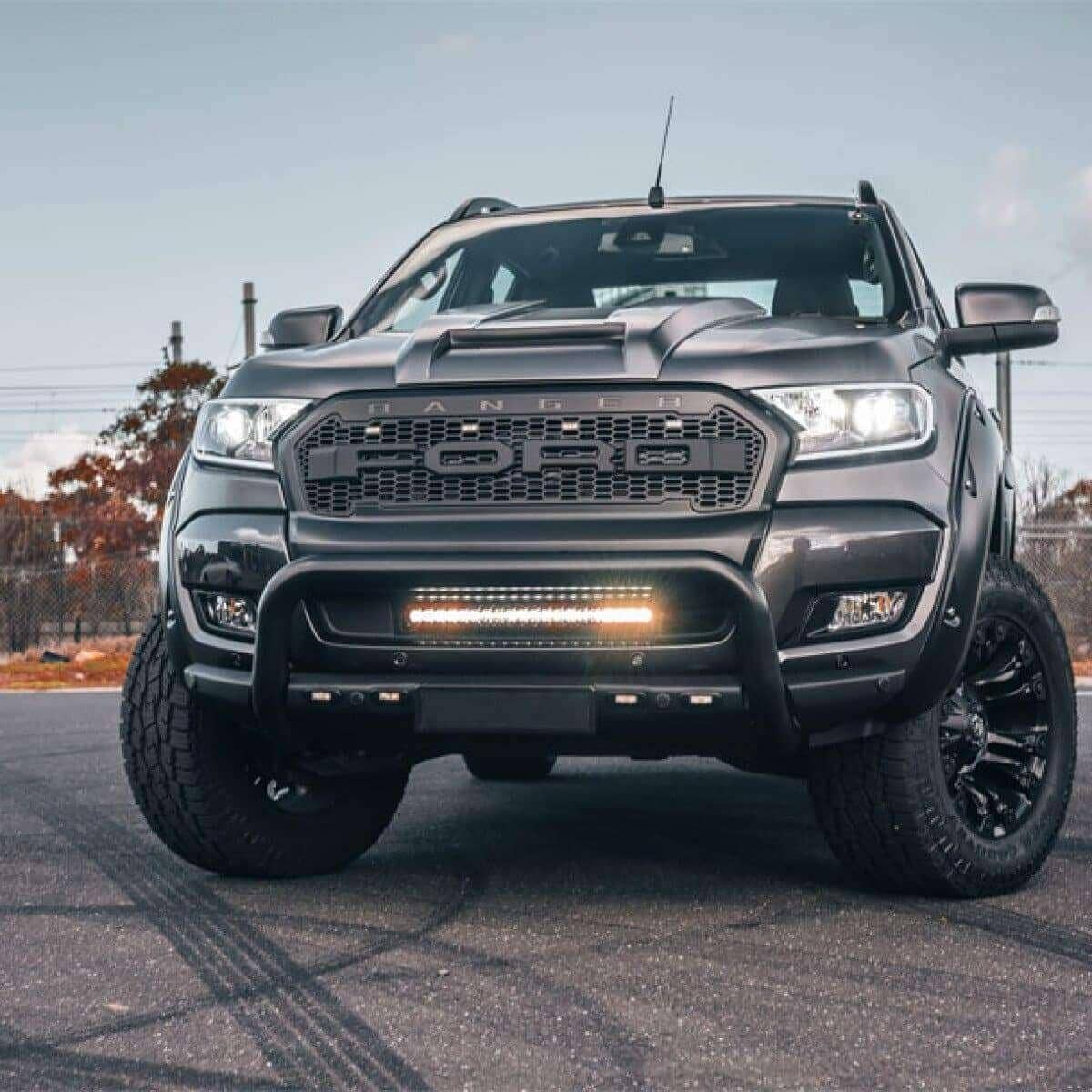

Our STEDI ST3K LED Light Bar was designed to bring a large amount of light to a small amount of space. With its small profile of just 63mm total height with the side brackets attached, you will find the ST3K is able to be mounted in locations like your front bar and grill whilst maintaining the factory look of your vehicle.
PERFORMANCE
The ST3K packs quite a powerful punch running off the same Pure Drive technology + LEDs as our popular Type-X and ST4K range. Ability to mount in tight spaces are its key trait as it can be mounted on your standard vehicle and prove to be a useful source of light whilst driving out bush with cars that don't have the space to run some of our larger LED light bars.
BEAM CHARACTERISTICS

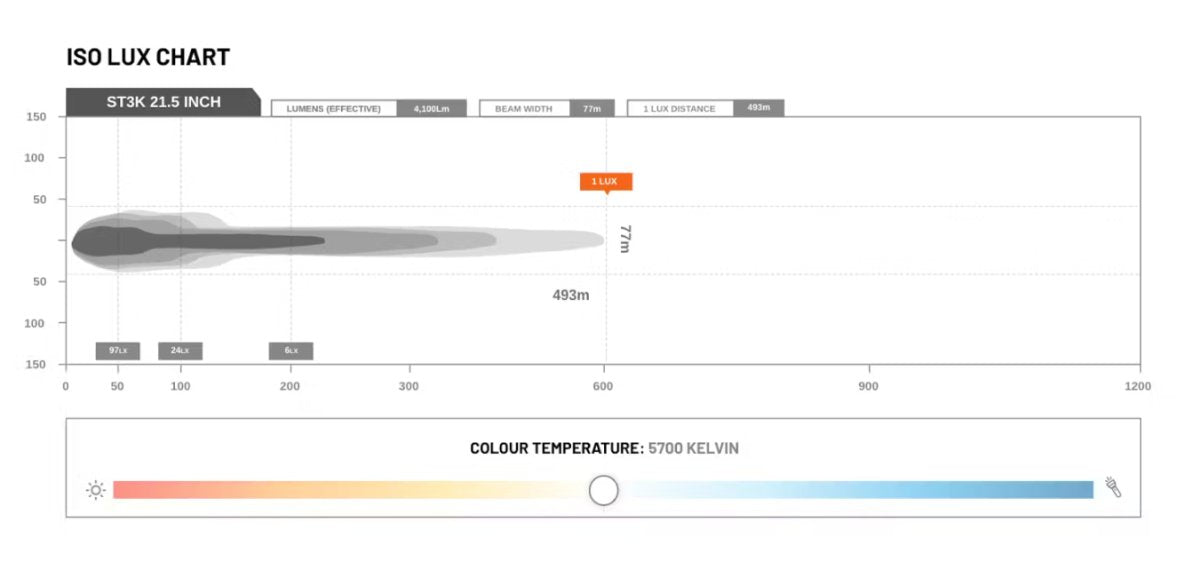

Easily comparable to our STEDI Type-X and ST4K range the beam type of the ST3K follows in line. Providing a strong penetrating beam with 493m at 1 LUX and 55m out to the shoulders of the road with flood beam, the perfect all-rounder with low profile has arrived!
DETAILS
MARKET LEADING PERFORMANCE.

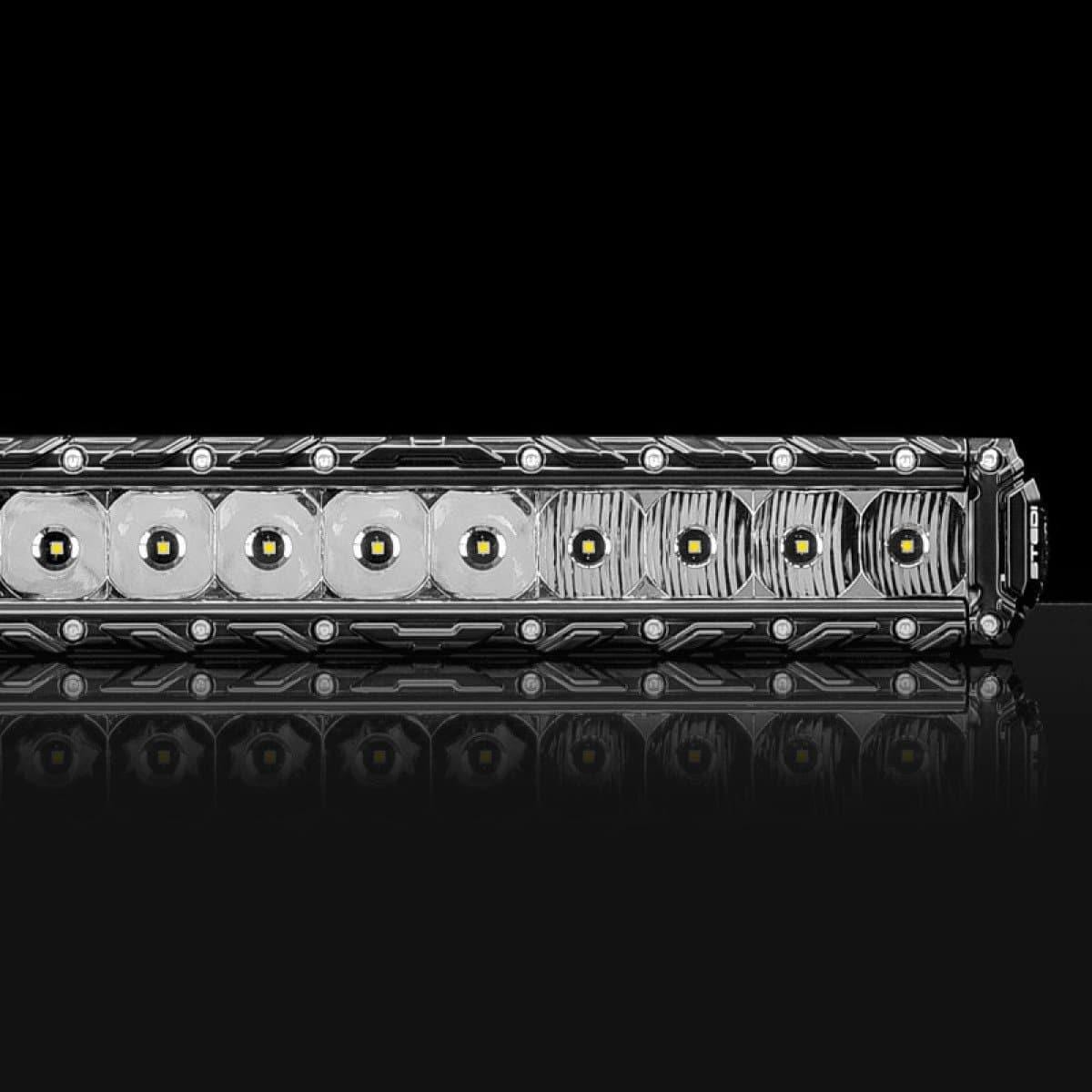

ST3K-20L features 20 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.

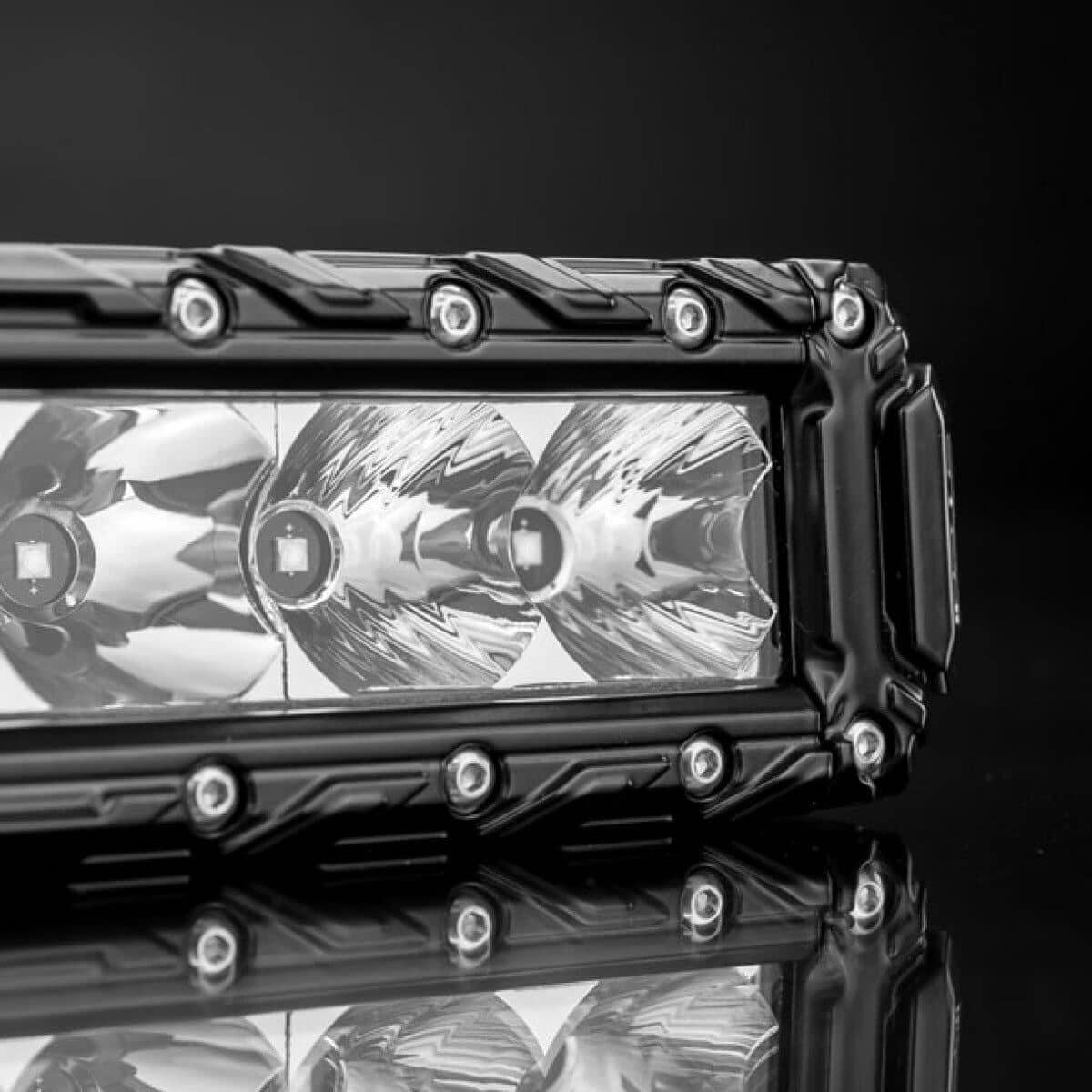

4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m
True White 5700K Colour temperature offers stunning clarity and definition.
Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.
BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.
Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

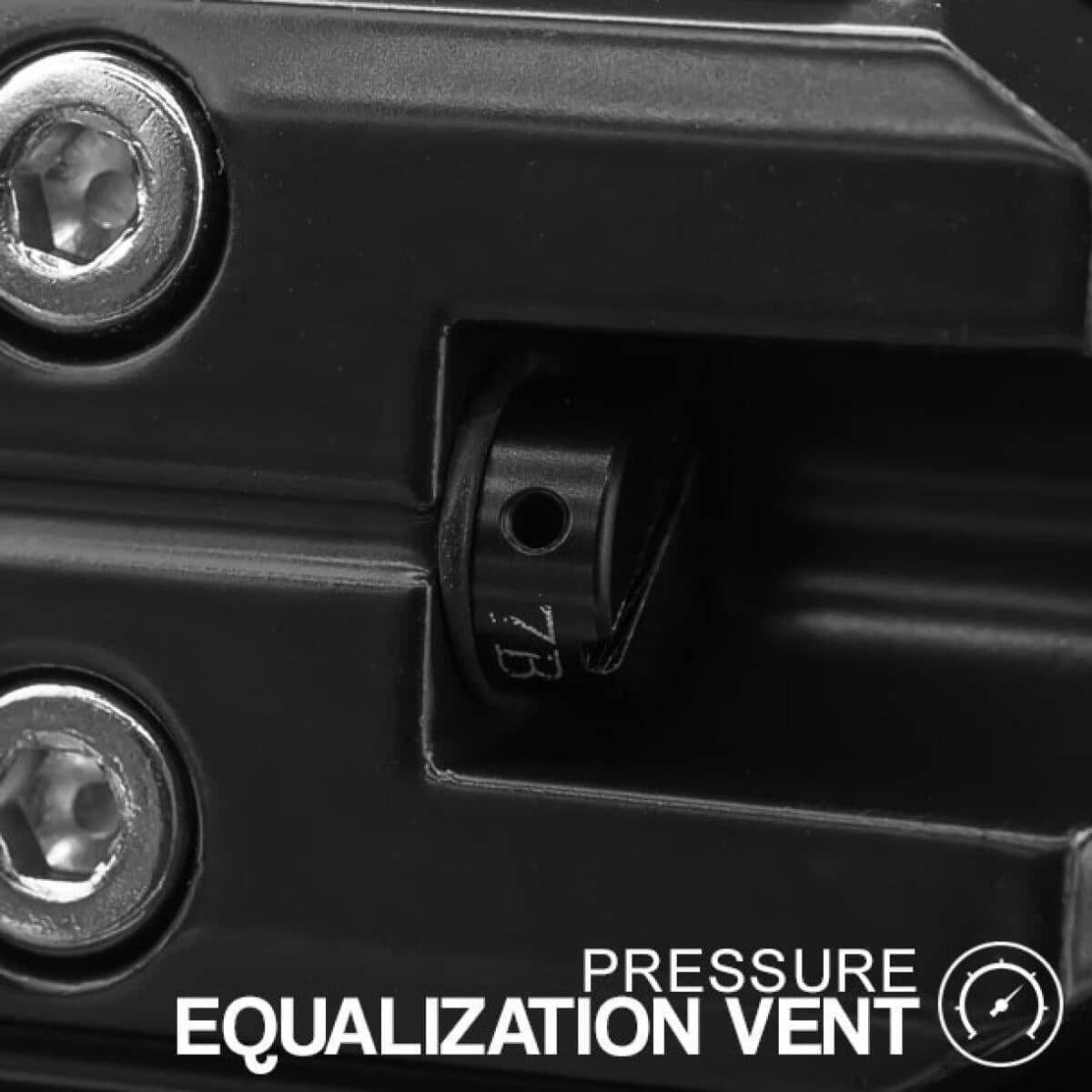

Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!

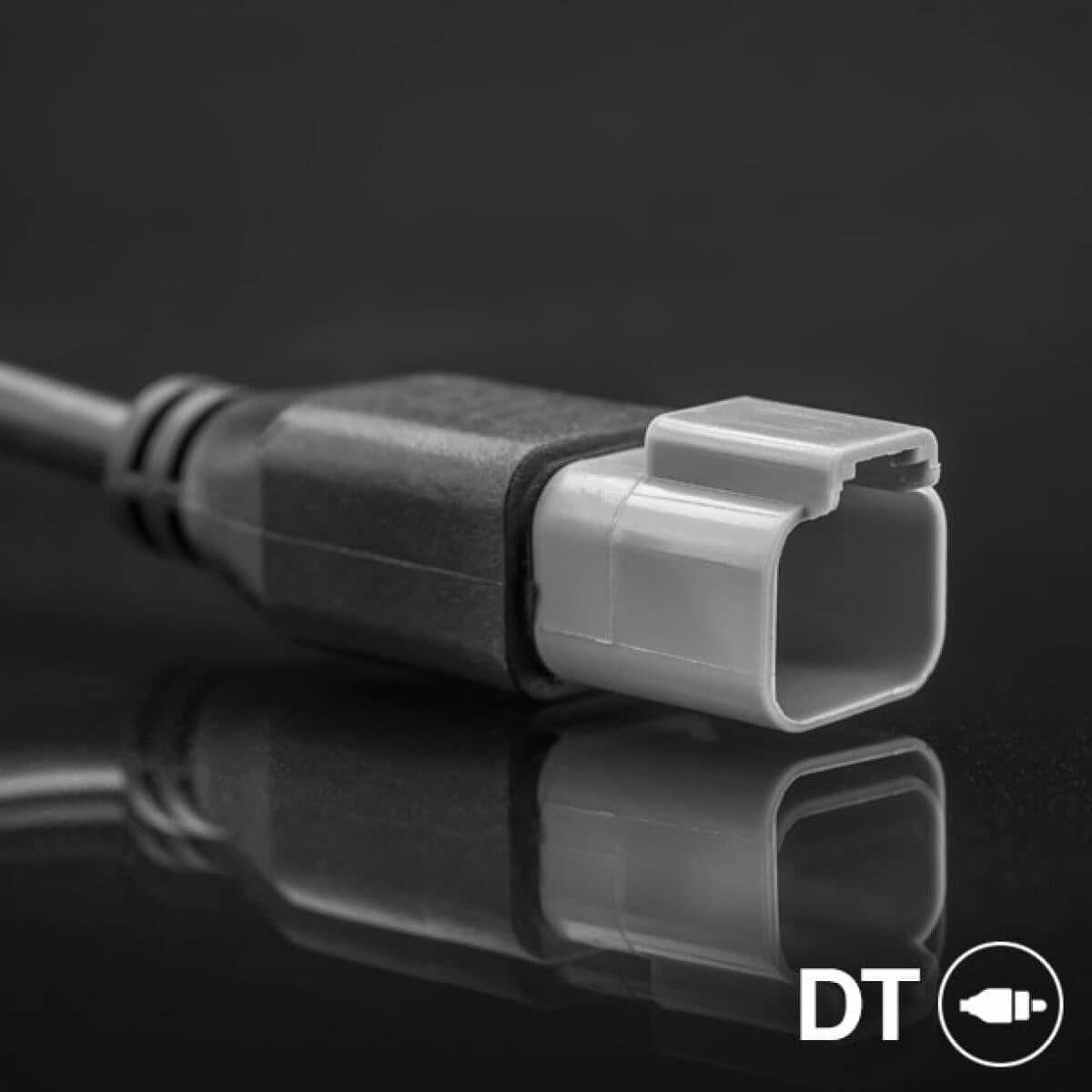

Environmentally sealed Deutsch ® DT-2 connector.
Protected against EMC and RFI.

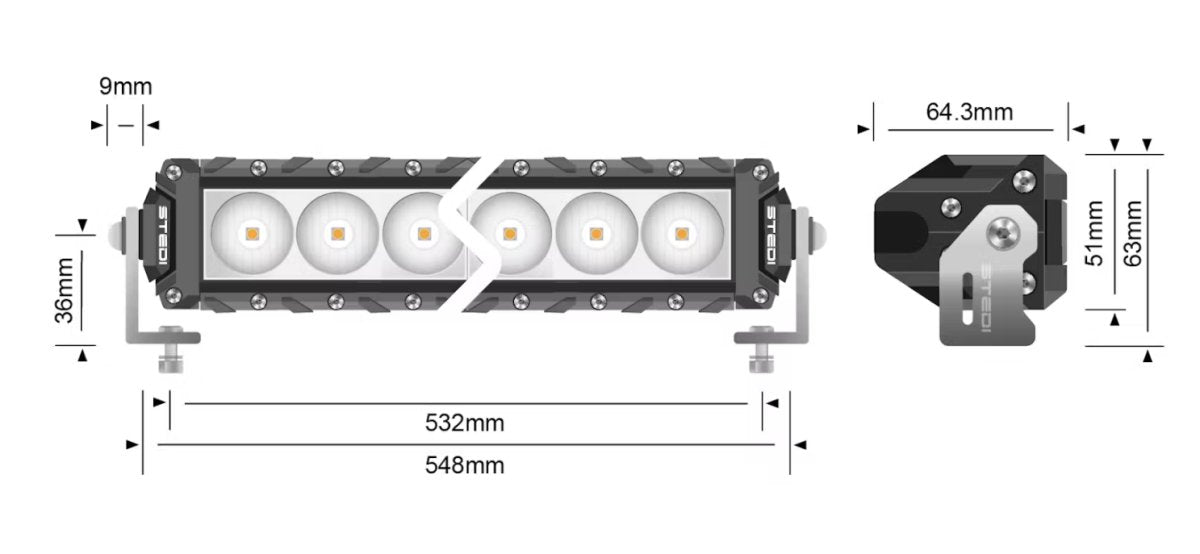

Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

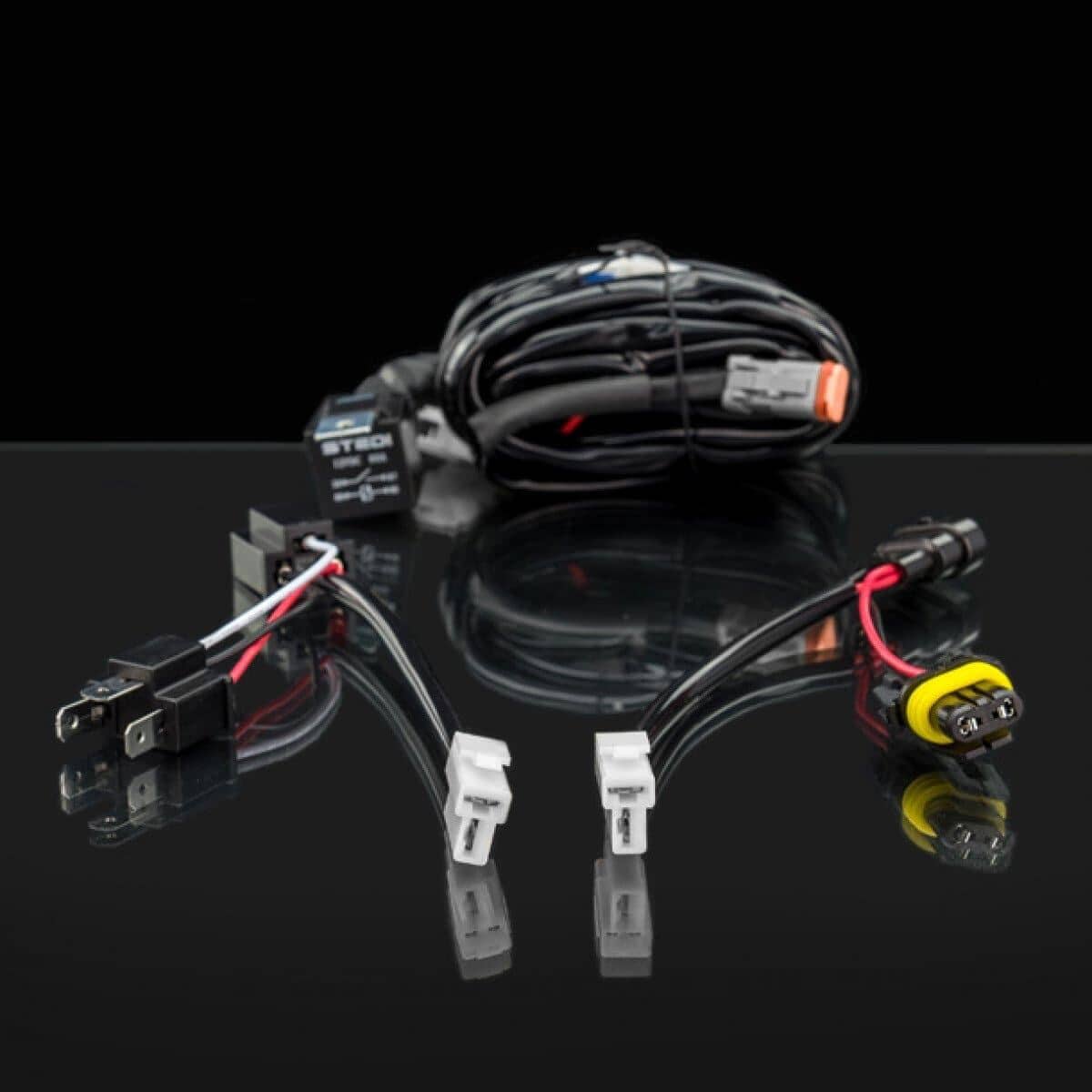

Includes our Easy Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market ours has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems
Backed by a 5 Year Replacement Warranty.
SPECIFICATIONS
| LED | 20 x Osram Oslon White |
| EFFECTIVE LUMEN | 4,100Lm |
| PEAK INTENSITY | 243,200cd |
| OPERATING VOLTAGE | 10-30V DC |
| IP RATING | IP68 |
| CURRENT DRAW | 4.3A @ 13.5v |
| COLOUR TEMPERATURE (CCT) | 5700 Kelvin |

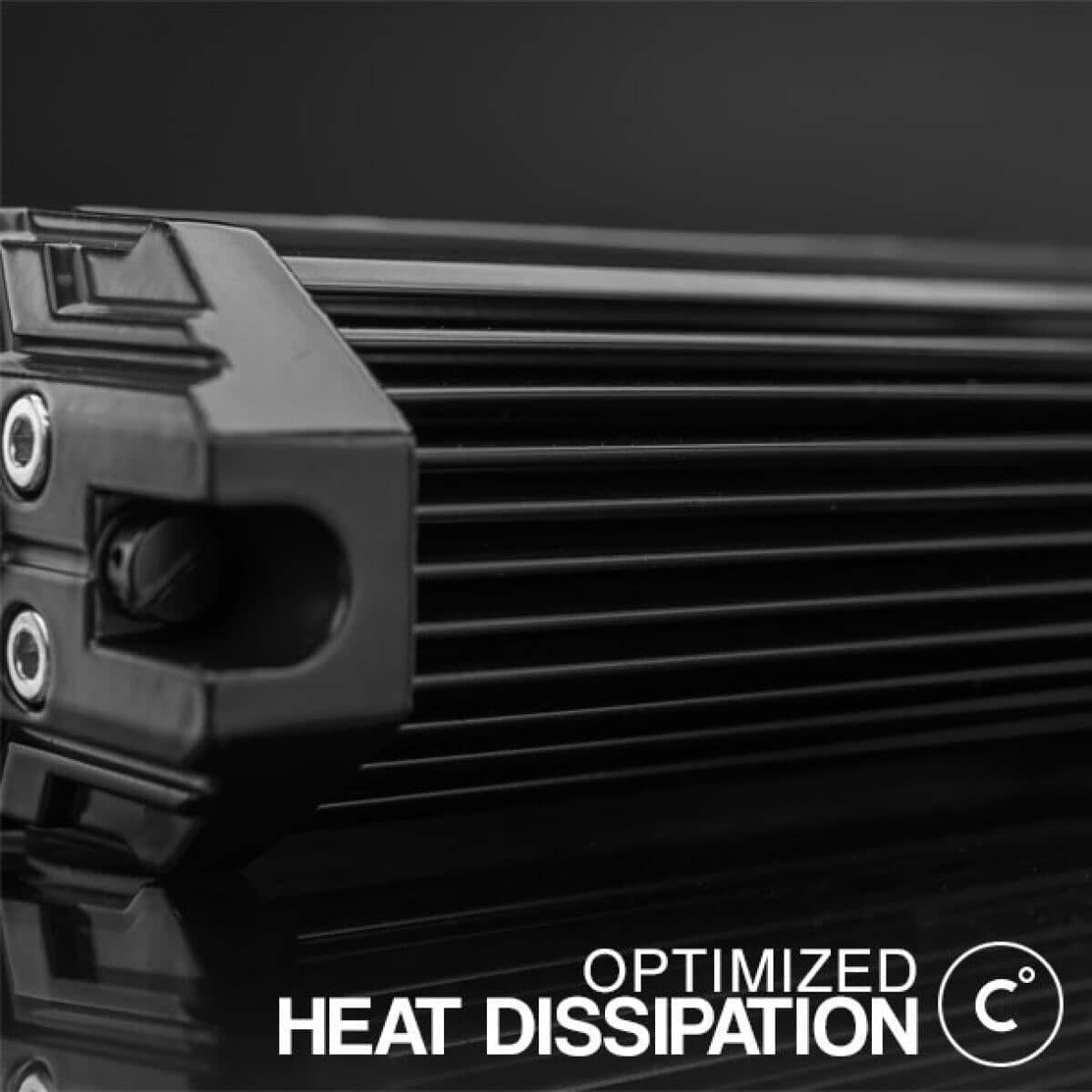

| HOUSING MATERIAL | Aluminium Extrusion & Cast |
| LENS | GE™ Lexan |

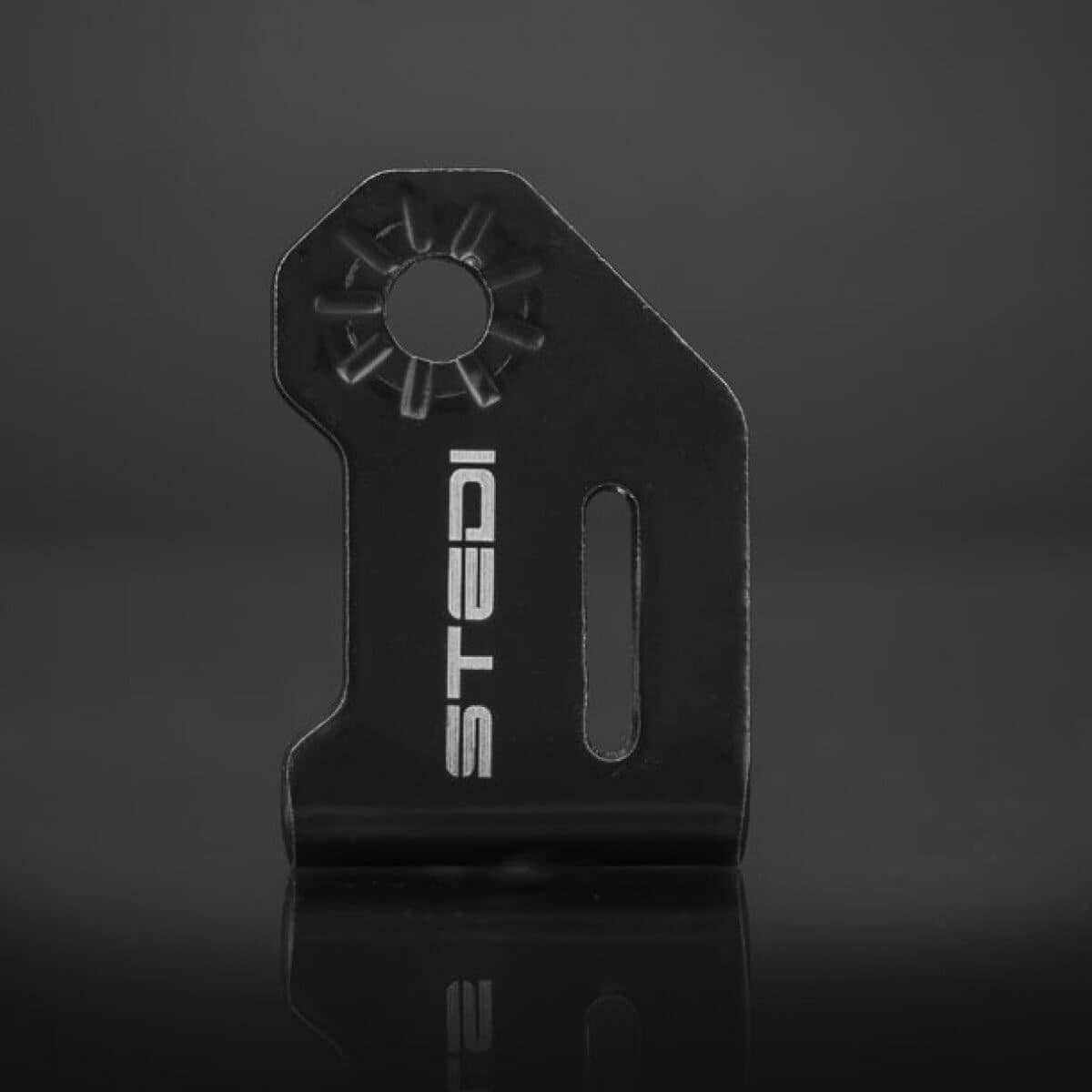

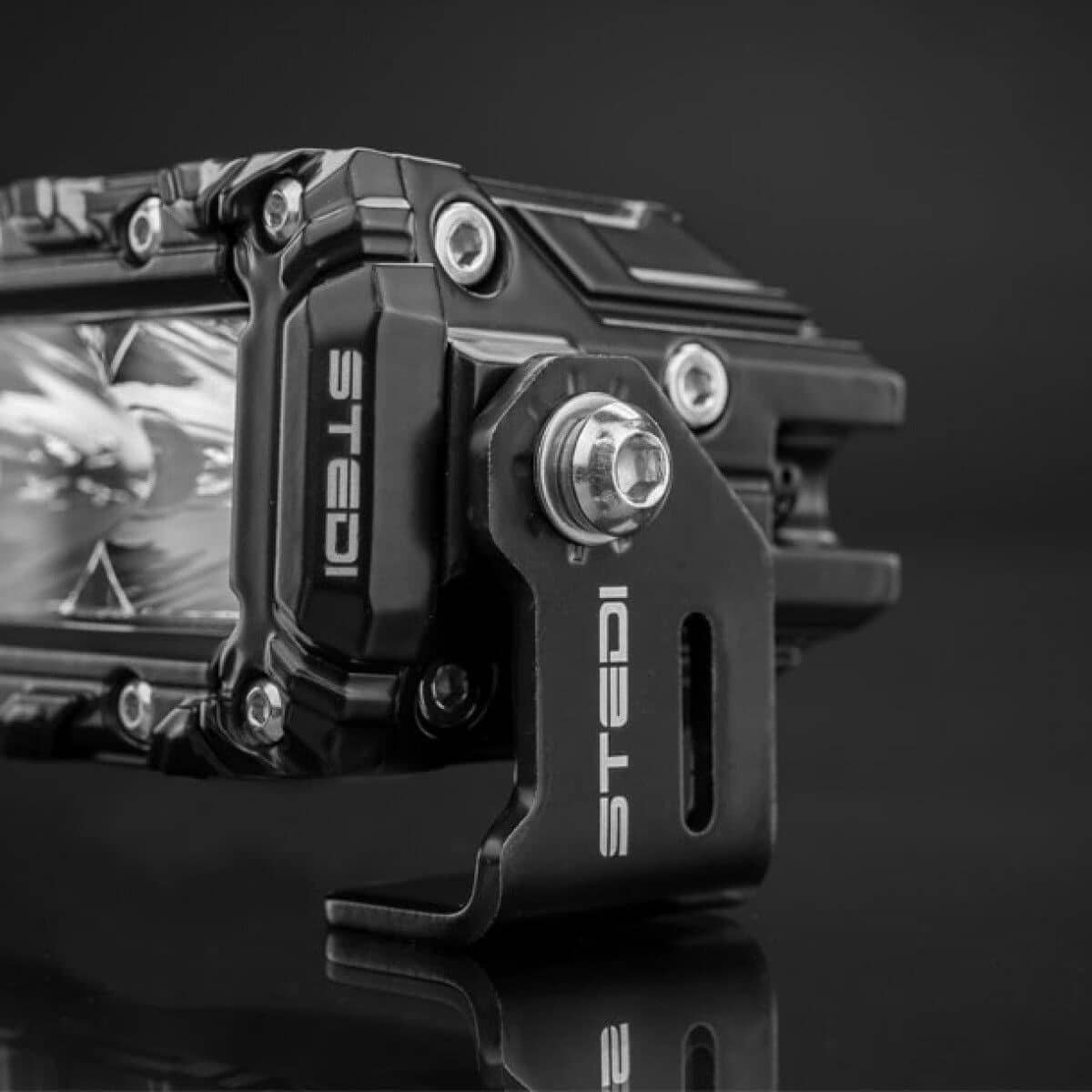

| MOUNTING BRACKET | Powder Coated 3mm Stainess Steel |
| BOLTS AND FITTINGS | 3 Series Stainless Steel |
| BEAM TYPE | Flood Spot Combo |
| LIFE SPAN | 50,000 Hours |
| WEIGHT | 1.855 |
| OPERATING ENVIRONMENT | -40 - +50° Celsius |

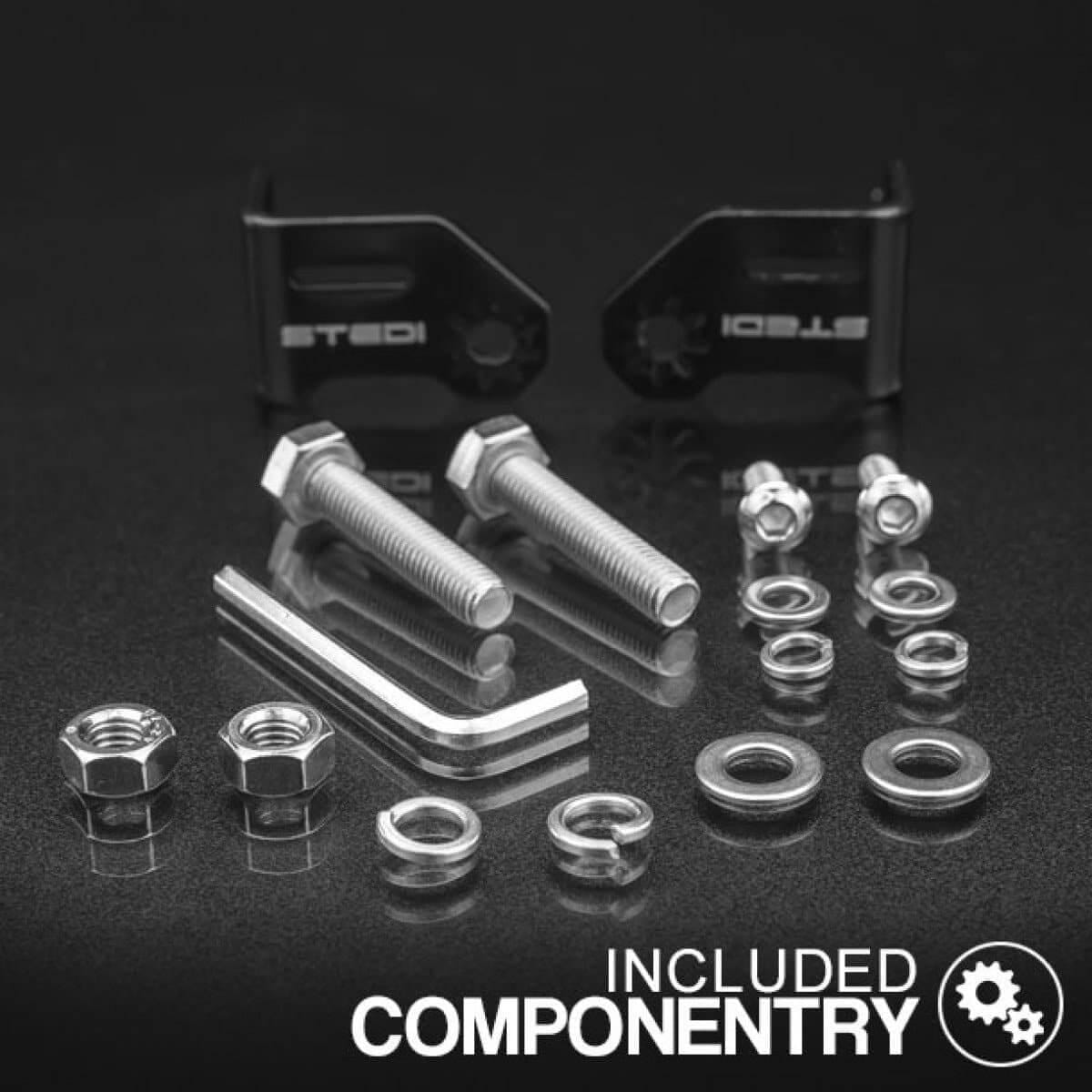

WHAT’S IN THE BOX
- ST3K 21.5inch LED LIGHT BAR
- Stainless Fasteners

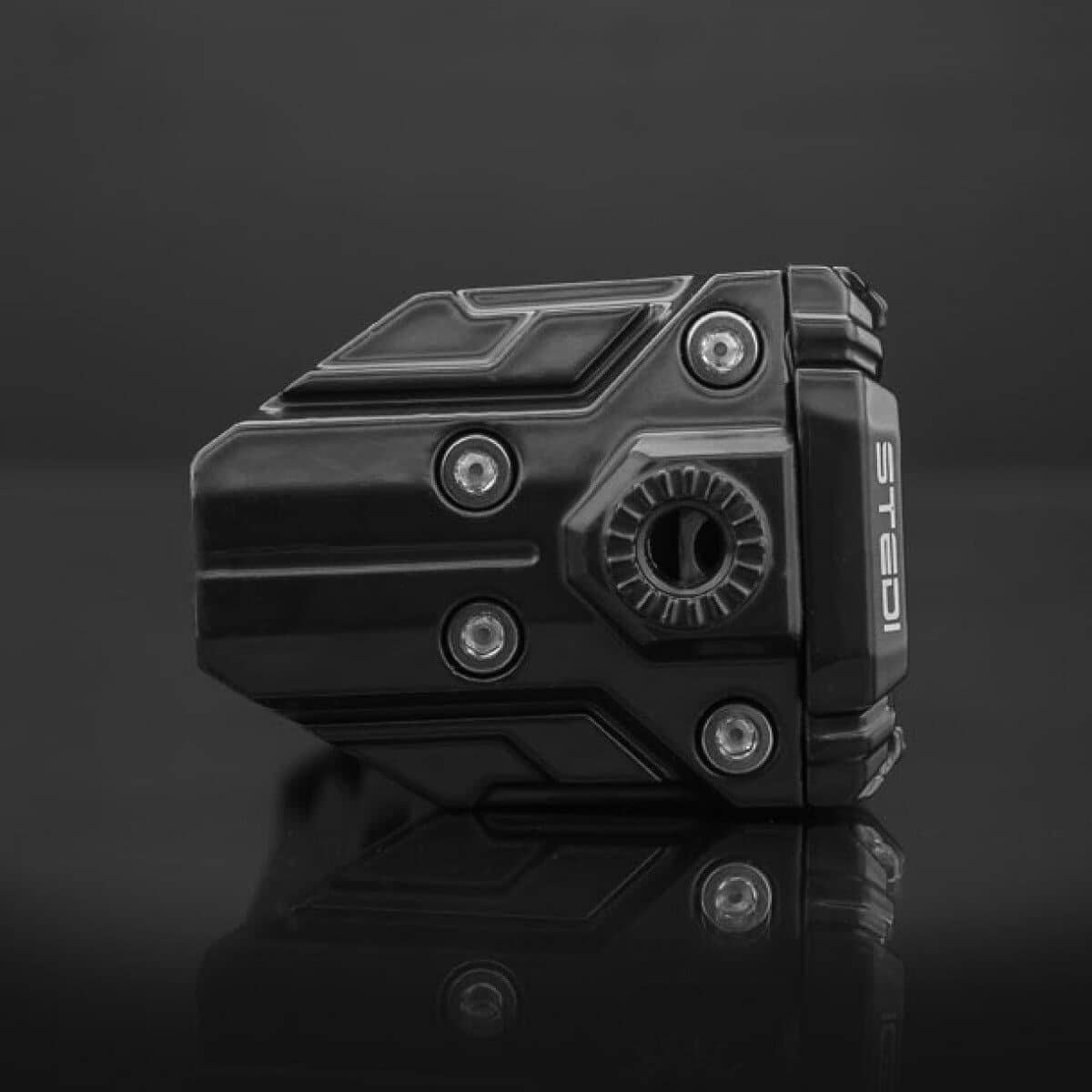

- Stainless Steel Side Mounting Brackets
- 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
- H4 and HB3 adapters included
- Wiring Instructions
