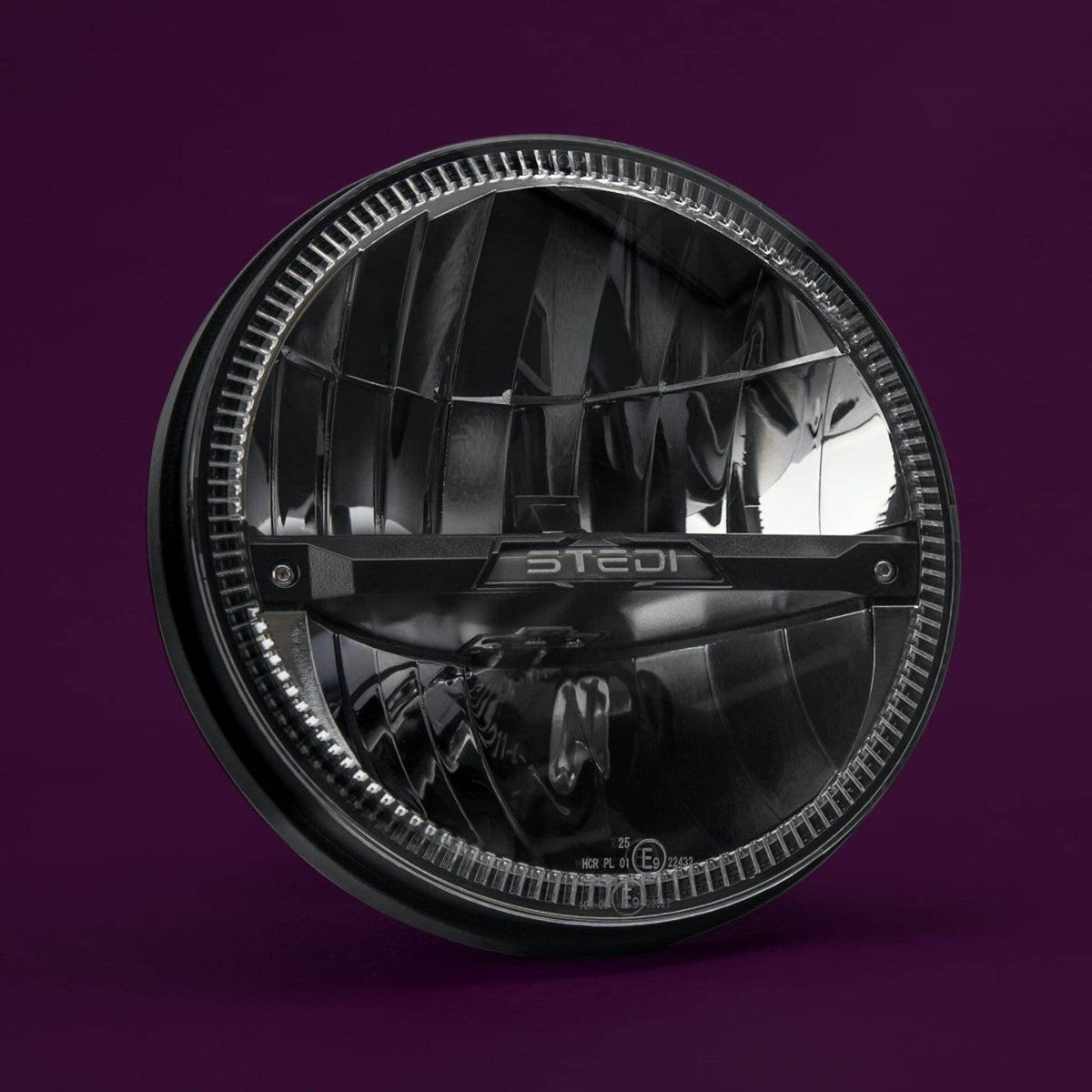

STEDI 7 Inch Homage LED Headlight
STEDI 7 Inch Homage LED Headlight
Couldn't load pickup availability
**PRICE SHOWN IS FOR A SINGLE STEDI 7 INCH HOMAGE LED HEADLIGHT**
A NOD TO THE CLASSIC STYLE.
The stylistic STEDI 7 Inch Homage LED Headlight is a throwback to the classic light design; think of the Jeep CJ, Mercedes G Wagon, Defender, old school muscle cars (to name just a few). A 100% ADR Compliant light that delivers a breaking-edge performance within a retro aesthetic, the STEDI 7 Inch Homage LED Headlight is sure to catch the eye of all car aficionados.
TRAILBLAZING LED TECHNOLOGY.
With a high beam that pushes a staggering 390m @ 1 lux, the STEDI 7 Inch Homage LED Headlight exemplifies the innovation and performance that makes STEDI a leader in the LED automotive auxiliary lighting industry.
390M @ 1 LUX.

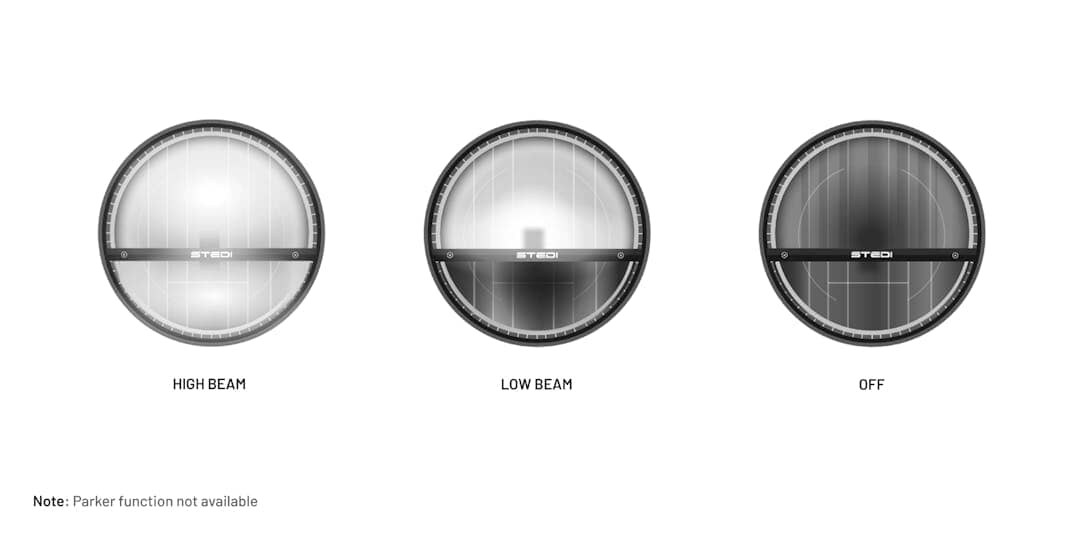

Designed with trailblazing dual-mode technology (low and high beam), the STEDI 7 Inch Homage LED Headlight exemplifies the innovation and performance that makes STEDI a leader in the LED automotive auxiliary lighting industry.
THE NITTY
GRITTY.
100% ADR compliant and legal for road use in Right Hand Drive markets.
COMPATIBLE MODELS:
Note: compatible with Positive-Switched Vehicles ONLY (solution for Negatively Switched Vehicles coming soon).
- 1955-1983 Jeep CJ-5
- 1976-1986 Jeep CJ-7
- 1981-1985 Jeep CJ-8
- 1997-2006 Jeep Wrangler (TJ)
- 2007-2018 Jeep Wrangler 2-Door (JK)
- 2007-2018 Jeep Wrangler Unlimited 4-Door (JK)

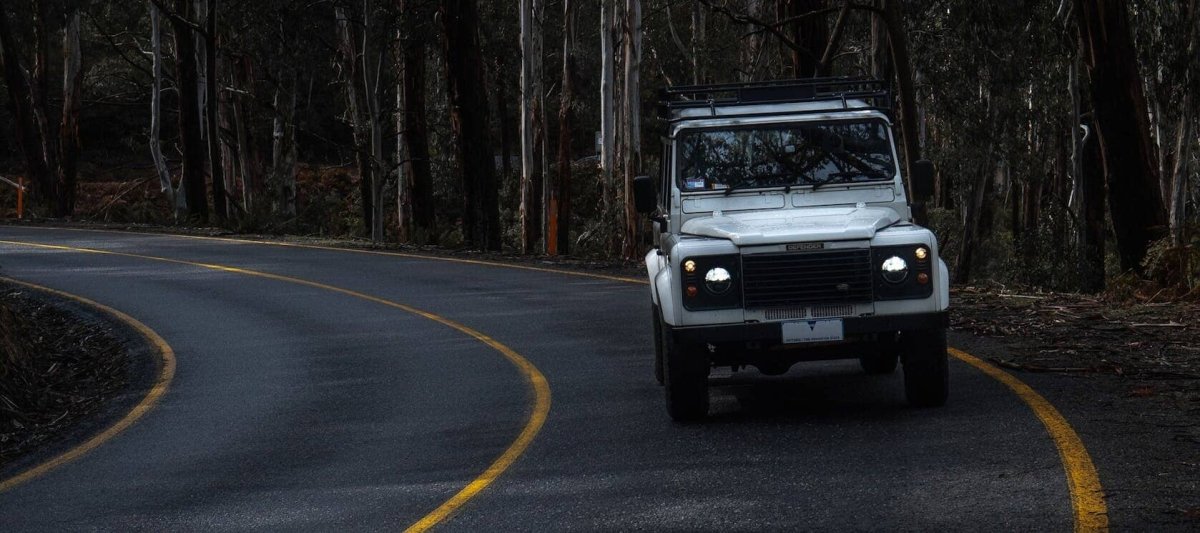

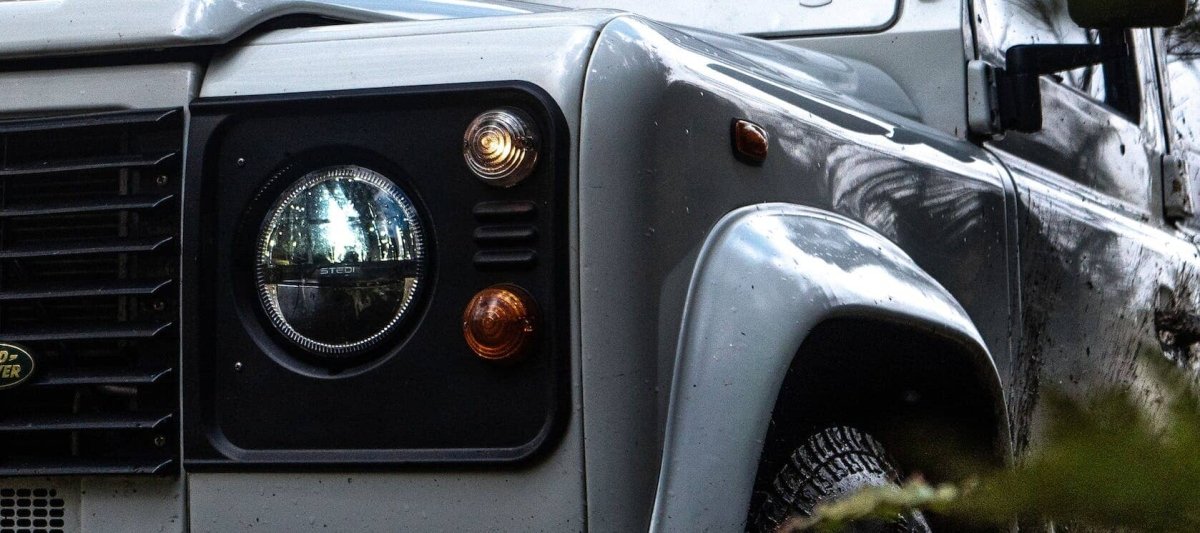

- Land Rover Defender
- 1982 - 1991 Mitsubishi Pajero (L040)
- GQ Patrol
- Harley Davidson Motorcycles
- Mercedes Benz G Wagon
- Kenworth Trucks with 7 inch round headlight
The above list of compatibility is not exhaustive, please use our vehicle selector above to check fit compatibility.
TECH SPECS
LED | 2 x 12W Osram KW H4L531.TE |
RAW LUMENS | 2400Lm |
AMP DRAW |
1A@24V 2A@12V |
LIFESPAN | 30,000 Hours |
INGRESS PROTECTION | IP68 |
OPERATING TEMPERATURE | -40°C~+60°C |
LENS MATERIAL | Hardened Polycarbonate Lens |
COLOUR TEMP | 5700K |
VOLTAGE COMPATIBILITY | DC 10V - 28V |

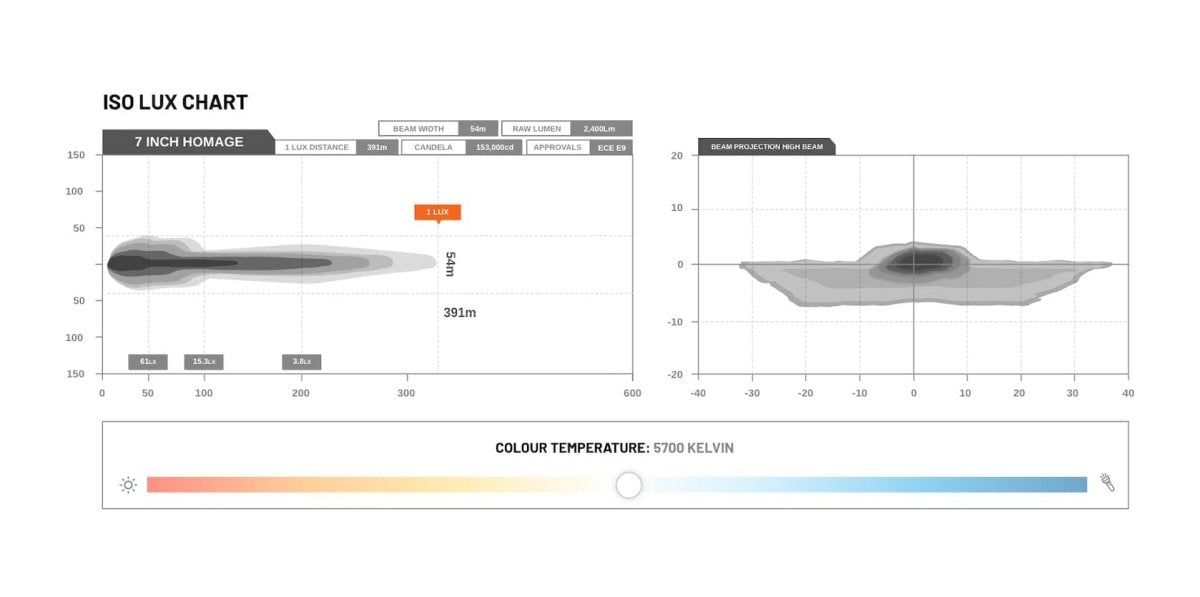

PEAK BEAM DISTANCE @ 1 LUX |
High Beam: 390m Low Beam: 212m |
WEIGHT (each) |
0.95kg each |
DROP IN REPLACEMENT | #6014, 6015, 6016, H6024 and Par 56 headlamp designs |

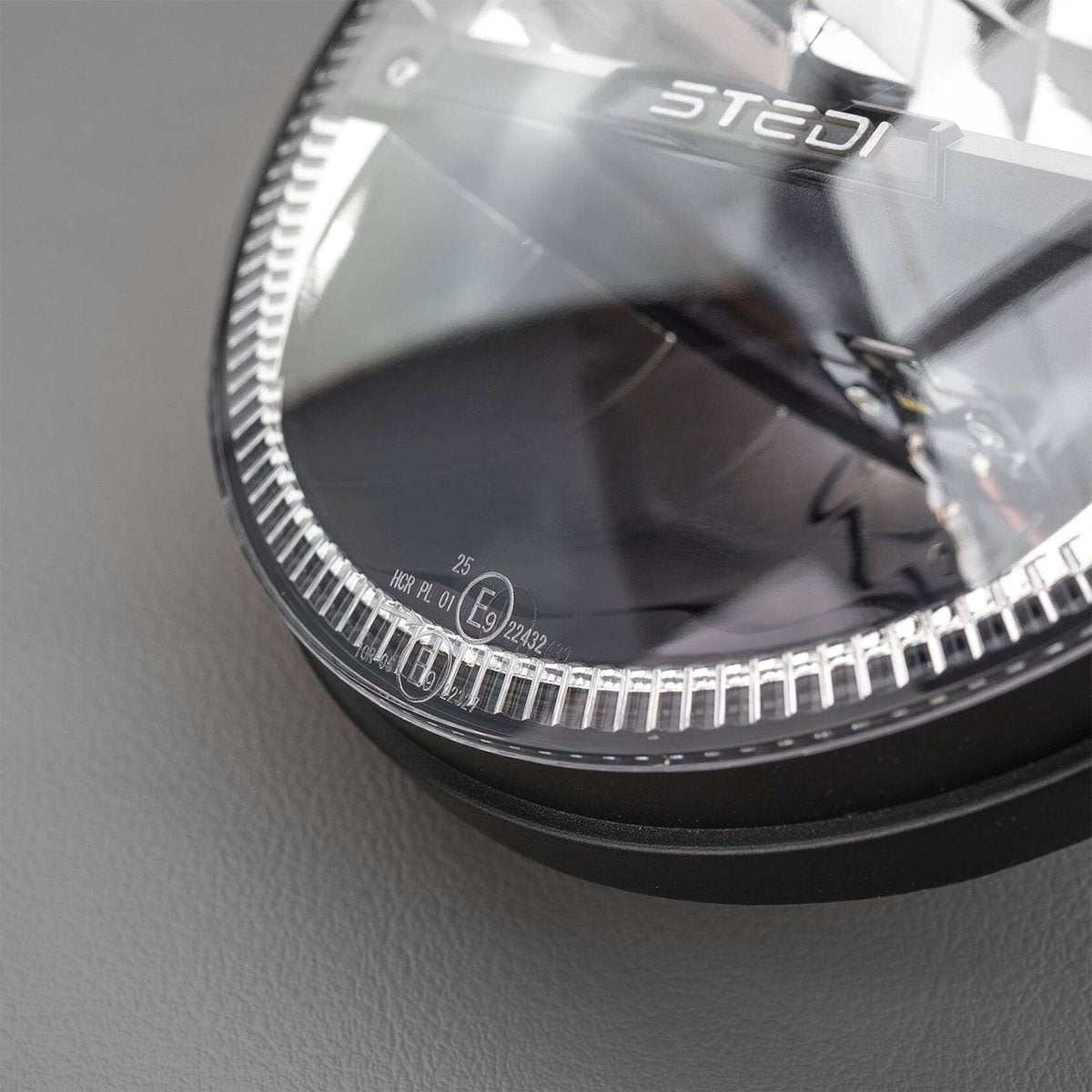

ADR COMPLIANCE |
E922432 E922327 |
CERTIFICATION |
CISPR25 Class 3 |
WHAT'S INCLUDED
- 1 x STEDI 7" Homage LED Headlight
