REDARC Timer Adjustable - 12V or 24V 10A (TIM06)

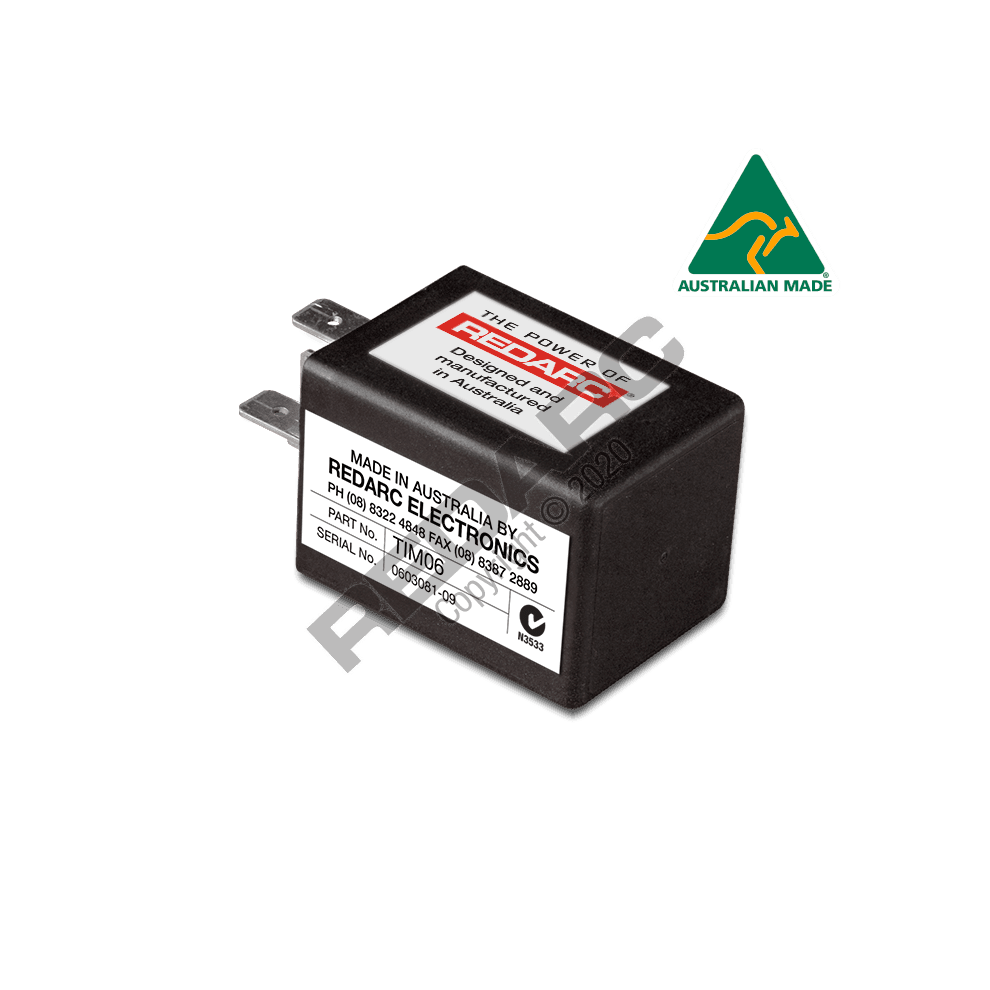

The TIM05 & TIM06 timers can be used in a 12V or 24V negative ground automotive system, are designed to plug into a standard automotive relay base and have the same pin numbers as a standard automotive relays (underside shown on diagram).

Contacts operate in a similar way to a changeover relay.

• The timer switches the internal relay to provide output on PIN 87. (Positive output only)
• The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1).
• Use Switch 2 to select time range between SECONDS and MINUTES.
• Use the potentiometer to adjust time (increasing in clockwise direction).

The TIM05 & TIM06 can supply a maximum current of 10 AMPS.

Features

• User adjustable 1- 60 seconds/minutes
• Change over type relay
• Standard automotive relay base
• Fully customisable upon request

Specifications:
