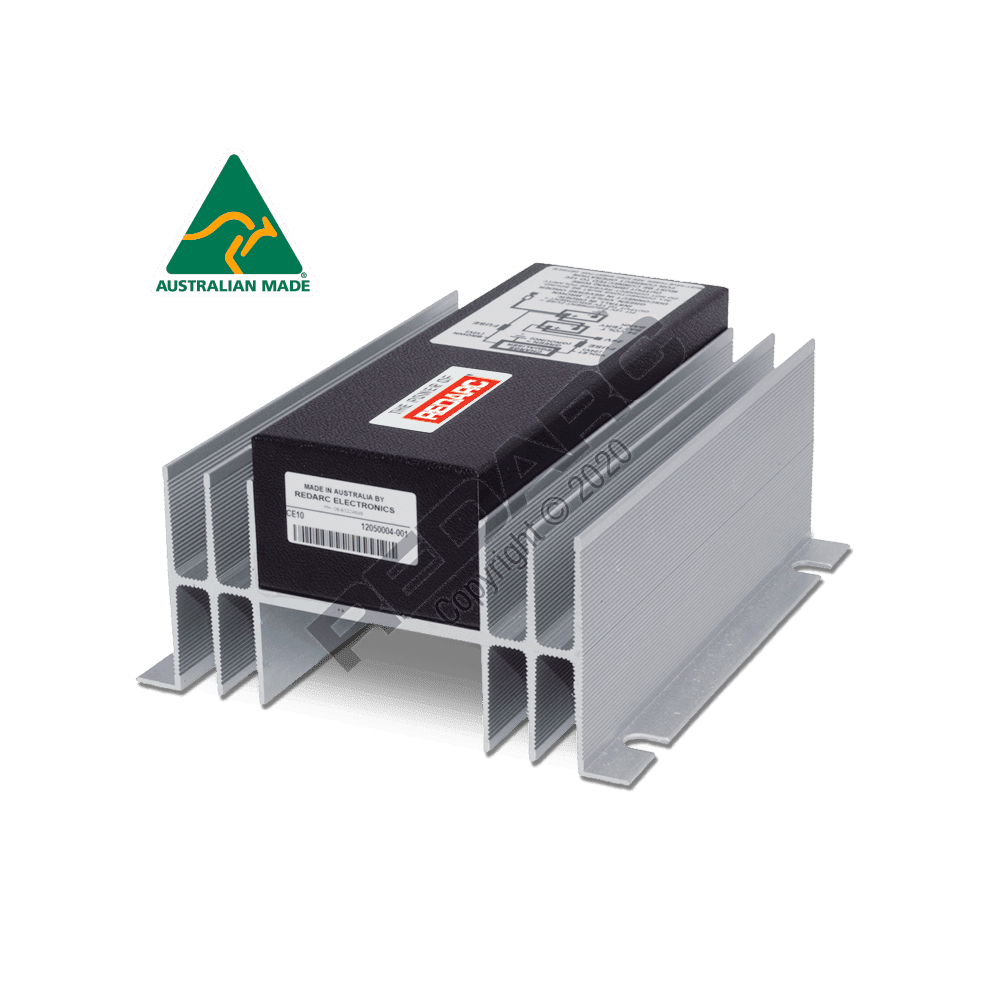

REDARC 10A Charge Equaliser
REDARC 10A Charge Equaliser
Couldn't load pickup availability
The REDARC 10A Charge Equaliser is designed to manage a high current 12 volt supply in a 24 volt vehicle. It allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries.
Charge Equalisers are often used when lack of space or cost prohibits the installation of a separate 12 volt battery.
The REDARC Charge Equaliser has a high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply.
It has the advantage of drawing power from a battery rather than through a current limited device, like a voltage reducer. This allows for a much larger peak current draw.
Benefits
- Designed to keep your 24 volt batteries equally charged
- Cost effective product for supplying 12 volts to any type of load
- Peak load currents available are limited only by the battery
Features
- High peak current capability
- Fast transient response
- Fully encapsulated
Specification:
| Input (Operating) Voltage | 19 - 33VDC |
| Output Current Rating (Cont.) | 10A |
| Input Fuse Rating | 15A |
| Output Fuse Rating | 15A |
| Warranty | 2 Years |
| Output System Voltage | 12VDC |
| Length (mm) | 156 |
| Width (mm) | 135 |
| Height (mm) | 75 |
| Weight (kg) | 0.8 |
