Smittybilt X20 Gen3 12 000lbs Winch

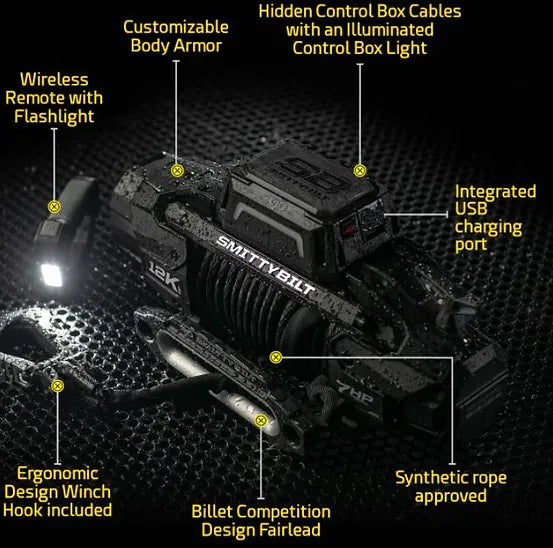

The Smittybilt X2O winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O GEN3 winch features a series wound 7HP motor that is completely sealed, as well as all-new forged gears. The X2O line features a completely waterproof 500 AMP control box that can be mounted in 2 different locations.

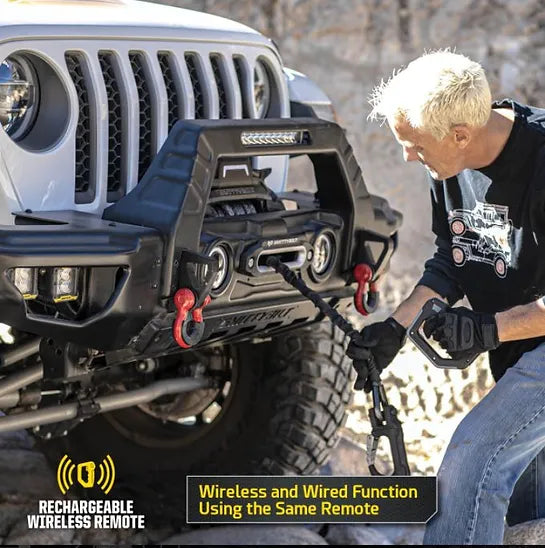

All-new wireless controller with USB connectivity that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimised gear ratios that deliver lightning- fast line speeds. The X2O series comes standard with a synthetic winch rope for maximum performance.

• Tech Specs

  • BETTER PERFORMANCE - completely redesigned 7HP motor to new standard in recovery power delivering faster line speed
  • NEW USB Connectivity - allows quick charging for wireless remote right on the winch or standard USB plug

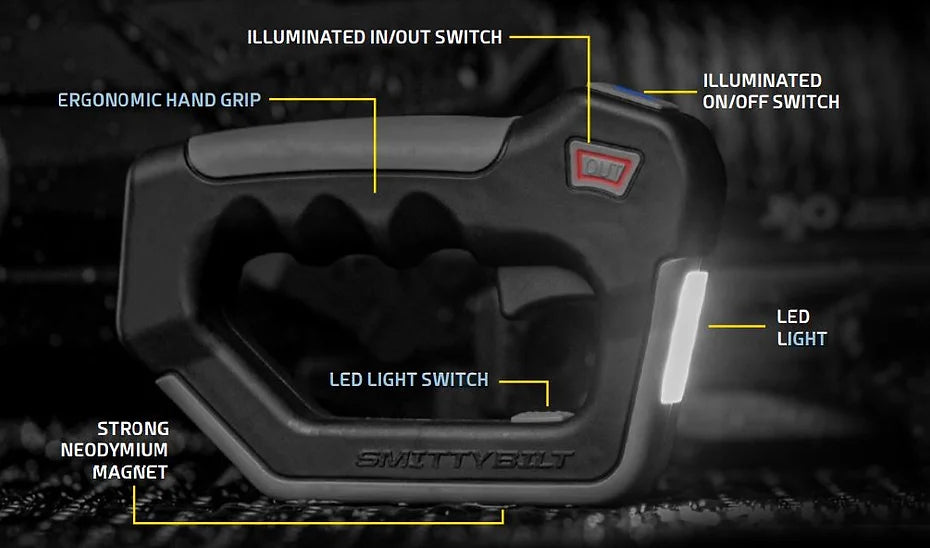

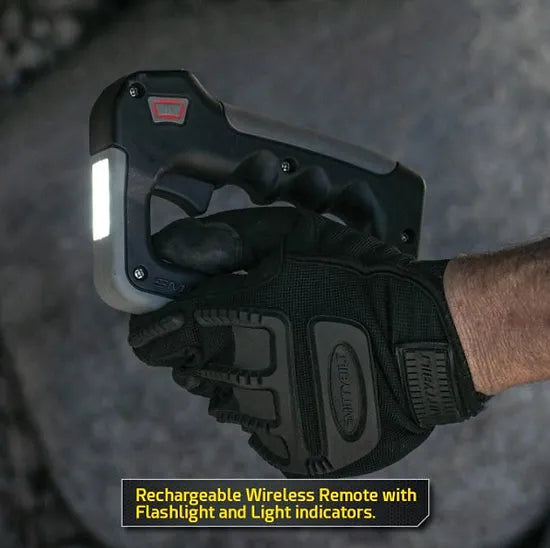

  • NEW Wireless ergonomic remote design with built-in flashlight and load indicators
  • IP68 RATED - All-new-rugged armor and waterproof construction protects against dust, dirt, mud, and debris
  • NEW Improved Hook - Smittybilt Delta Hook allows easy removal for new lines and other accessories
  • SPOOLED READY - ready to go out of the box for your next off-roading adventure
  • NEW Customizable UV resistant rugged armor
  • NEW Larger, redesigned clutch lever lets you quickly identify clutch engagement from a distance.

  • Waterproofing: IP68 Rating
  • Rated Line Pull: 12,000Lbs (5,454kgs) Single Line
  • Motor: 7hp Series Wound
  • Control: Remote Switch, 12' (3.7m) lead
  • Gear Train: 3-Stage Planetary
  • Gear Ratio: 265:1
  • Clutch: Sliding Ring Gear
  • Brake: Automatic Out-Of-Drum
  • Drum Size: Diameter 2.5"
  • Cable: 98.5' 3/8" Diameter
