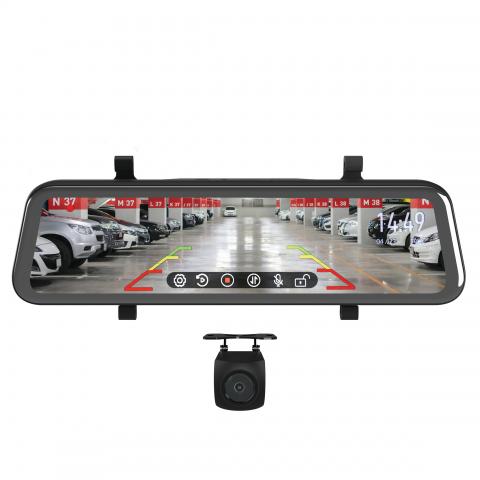

9"GATOR HIGH RESOLUTION MIRROR MONITOR WITH HD 1080P REVERSE & LIVE STREAM CAMERA

Reverse, live streaming and recording capabilities, the Gator GRV90MKT provides the ultimate surveillance and protection for the rear of your vehicle. Featuring a super wide 9" high resolution touch display and HD 1080P camera, the mirror monitor simply clips over the existing rear view mirror on the vehicle for convenient unobtrusive viewing. While driving, the mirror monitor will simply appear as a standard reflective mirror and also has the ability to live stream, displaying what is behind the vehicle in real time, which is ideal for Trucks, Utes, Vans and Motorhomes which may have limited rear vision. When reverse gear is selected, the monitor will automatically switch to the reverse camera and display parking gridlines to provide guidance when reversing. GRV90MKT also has a built in G-Sensor and loop records, simply add a Class 10 micro SD card up to 64GB to the unit and it will capture any incidents or events that may occur at the rear of the vehicle.

• 9" high resolution super wide LCD touch screen mirror monitor
• 1080P High definition camera with video recording at 30 fps for clear crisp recordings (optional micro SD card required, sold separately)
• Rubber clip-on mirror mount for simple and secure installation, suitable for all vehicles with a rear-view mirror
• 110-degree wide angle camera lens reduces blind spots at the rear of the vehicle
• Automatic reverse trigger displays reverse image and parking gridlines when reverse gear is engaged to assist with reverse parking
• Live streaming function enables the monitor to display rear vision while driving, ideal for vehicles with limited rear vision
• Built in G-Sensor detects an impact and securely saves the video footage on the micro SD Card separate from the continuous loop files (optional micro SD card required, sold separately)
• Seamless cycle loop recording function continuously records in an indefinite loop without stopping, constantly overwriting the oldest file with the newest video (optional micro SD card required, sold separately)
• Supports Micro SD card class 10 up to 64GB (sold separately)
• Includes a 5.4m rear camera cable with trigger wire to connect the rear cam to the monitor
• GRV90EXT 3m extension cable also available if extra length is required for installation in longer vehicles such as; utes, trucks and vans (sold separately)
• GUNIHWC Hard Wire Kit available for connection via vehicle fuse box instead of using the included accessory socket power adaptor (sold separately)
• Also includes USB lead, mounting screws, 3M adhesive, mirror protector pads and rubber mounting clips

MONITOR SPECIFICATIONS

• MONITOR SIZE: 9.35"
• MOUNTING TYPE: CLIP ON REAR VIEW MIRROR
• INPUT VOLTAGE: 5V (12/24V ACCESSORY POWER ADAPTER INCLUDED)
• VIDEO INPUTS: 1
• CONNECTION TYPE: 2.5MM JACK
• DIMENSIONS: 72mm(H) X 260mm(W) X 18mm(D)

REAR CAMERA SPECIFICATIONS

• MOUNT TYPE: SURFACE MOUNT
• CAMERA RESOLUTION: 1080P
• CAMERA ANGLE: 110 DEGREE
• IMAGE SENSOR (CMOS or CCD): CMOS IMX323
• PARKING GRIDLINES: YES
• IP RATING: IP65
• INPUT VOLTAGE: 12V
• CONNECTION TYPE: MICRO 4 PIN
• VIDEO CABLE LENGTH: 5.4M (Additional 3M Extension Cable Also Available - GRV90EXT - sold separately)
• REVERSE TRIGGER ON VIDEO CABLE: YES
• DIMENSIONS (Camera Only): 19mm(H) x 24mm(W) x 22mm(L)

RECORDING SPECIFICATIONS

• NUMBER OF CHANNELS: 1
• RESOLUTION: FULL HD 1080P (REAR)
• FRAMES PER SECOND: 25 (REAR)
• CAMERA ANGLE: 110° (REAR)
• G-SENSOR: YES
• SUPER CAPACITOR / BATTERY: 400MAH 3.7V BATTERY
• AUTO POWER ON/OFF: YES
• MICROPHONE: YES
• SPEAKER: YES
• USB/POWER INPUT: YES (MICRO)
• HARD WIRE KIT: OPTIONAL
• POWER ADAPTOR VOLTAGE: 12/24V
• DASH CAM INPUT VOLTAGE: 5V 1.5A
• RECORDING MODES:
  • CONTINUOUS LOOP: YES (SEAMLESS CYCLE RECORDING)
  • DRIVING IMPACT/INCIDENT DETECTION: YES
  • MANUAL (SOS): YES
  • PARK IMPACT DETECTION: NO
  • PARK MOTION DETECTION: NO
• MEMORY CARD CAPACITY / CLASS: SUPPORTS UP TO 64GB (CARD MUST BE C6 OR ABOVE, C10 IS RECOMMENDED)

KIT SPECIFICATIONS

• WIRED OR WIRELESS: WIRED
• INCLUSIONS:
  • 6M CAMERA CABLE (INCLUDING CAMERA LEAD)
  • USB LEAD
  • 12V/24V CHARGING ADAPTER
  • MOUNTING SCREWS
  • 3M ADHESIVE FOR BUTTERFLY CAMERA
  • MIRROR PROTECTING PADS
  • RUBBER MOUNTING CLIPS

OPTIONAL EXTRAS AND SPARE PARTS

• OPTIONAL EXTRAS:
  • GRV90EXT: 3M Video Extension Cable
  • GUNIHWC: Hard Wire Kit
• SPARE PARTS (Not in retail packaging & no barcode)
  • GRV9RC: Replacement Rear Camera
  • GRV9LOOM: Replacement main camera harness (4 pin to 2.5mm jack)
  • GRV912V: 12/24V Cigarette lighter adapter
  • GRV9RMC: Monitor rubber mounting clips
  • GRV9BRA: Monitor mounting brackets
